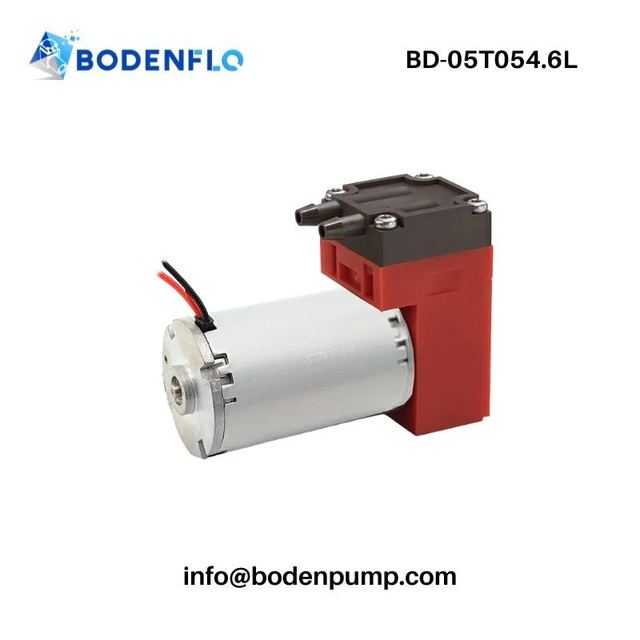

Miniature Diaphragm Pumps 12V 24V 4.6L Chemic Resistant Lab Vacuum Pump -72KPA BD-05T054.6L
Model BD-05T054.6L
Overview
Miniature Diaphragm Pumps 12V 24V 4.6L Chemic Resistant Lab Vacuum Pump -72KPA BD-05T054.6L supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 12/24V; Max Flow 4.6L/min; Max Vacuum –72 kPa; Max Pressure 1~1.5Bar. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 12/24V |
|---|---|
| Max Flow | 4.6L/min |
| Max Vacuum | –72 kPa |
| Max Pressure | 1~1.5Bar |
| Max Power | 5 W |
| Weight | 195g |
| Voltage Range | 12V / 24V |
| Maximum Flow | 4.6 L/min |
| Motor Type | Brushed DC Motor |
| IP Rating | IP40 |
| Service Life | >2,500 hours |
| Dimensions | 76 × 31 × 55 mm |
| Component | Material / Performance |
| Diaphragm/Valve | EPDM standard / FKM optional |
| Pump Body | Nylon – durable and lightweight |
| Seal Design | Proprietary low-leakage design |
| Customization Aspect | Options / Notes |
| Label / Branding | Custom branding for OEM projects |
