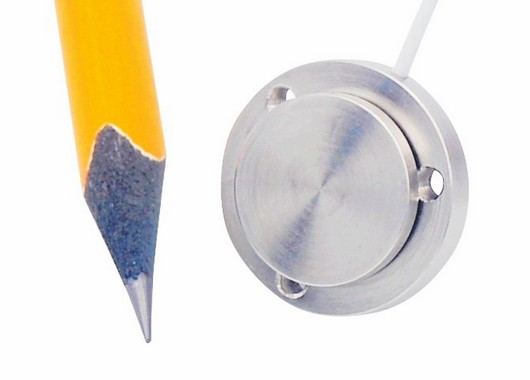

Miniature Compression Sensor 50kg 20kg Flat Button Load Cell 10kg
Model FCFP
Overview
Miniature Compression Sensor 50kg 20kg Flat Button Load Cell 10kg supplied by Forsentek Co. Limited. Key published specifications: Range 100N 200N 500N; Type Flat Button; Output Analog Sensor; Rated output 1.0mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Range | 100N 200N 500N |
|---|---|
| Type | Flat Button |
| Output | Analog Sensor |
| Rated output | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±1% of full capacity |
| Hysteresis | ±1% of full capacity |
| Nonrepeatability | ±0.5% of full capacity |
| Creep(3min) | ±0.3% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.05% R.O./ o C |
| Temperature shift span | ±0.05% R.O./ o C |
| Input resistance | 1000 ±100 ohms |
| Output resistance | 1000 ±100 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Material | Stainless Steel |
