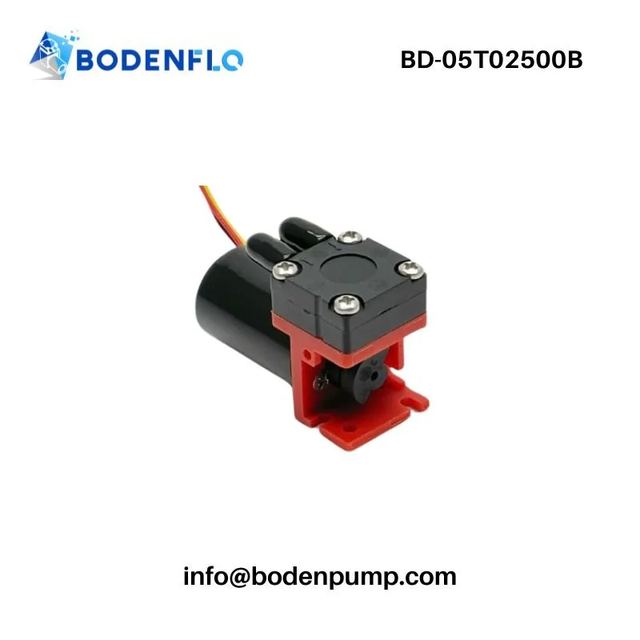

Mini Diaphragm Pump 5V Gas Sampling Pump BD-05T02500B
Model BD-05T02500B
Overview
Mini Diaphragm Pump 5V Gas Sampling Pump BD-05T02500B supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 5V; Max Flow 250/400/500/550ml/min; Max Vacuum –45 kPa; Max Pressure +44 kPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 5V |
|---|---|
| Max Flow | 250/400/500/550ml/min |
| Max Vacuum | –45 kPa |
| Max Pressure | +44 kPa |
| Max Power | 0.5 W |
| Weight | 22 g |
| Voltage Range | 5 V DC |
| Max Flow Rate | 250/400/500/550 ml/min |
| Max Negative Pressure | –45 kPa |
| Max Positive Pressure | +44 kPa |
| Motor Type | Brushless DC Motor |
| IP Rating | IP00 / IP50 (optional) |
| Service Life | >8,000 hours |
| Pump Head | POM |
| Diaphragm/Valve | EPDM (Optional FKM) |
| Pump Body | POM |
| Dimensions | 38 × 17 × 25 mm |
| Component | Material / Performance |
| Lifetime | >8,000 hours (non-stop clean air use) |
| Customization Aspect | Available Options / Notes |
| Diaphragm Materials | EPDM or FKM |
| Cable / Connector Options | Tailored length, connector type |
