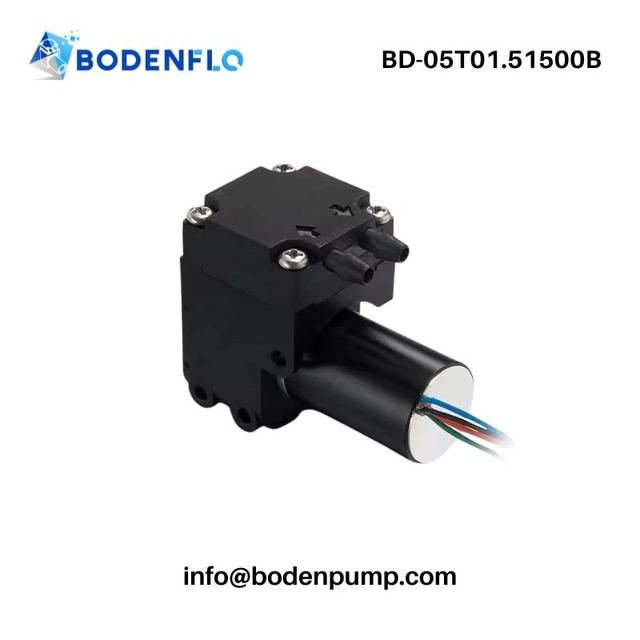

Mini Diaphragm Pump 1.5 L/min Stable Flow Brushless Micro Gas Pump BD‑05T01.51500B
Overview
Mini Diaphragm Pump 1.5 L/min Stable Flow Brushless Micro Gas Pump BD‑05T01.51500B supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 5V/12V; Max Flow 1L/min or 1.5L/min; Max Vacuum –45 kPa; Max Pressure +50 kPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 5V/12V |
|---|---|
| Max Flow | 1L/min or 1.5L/min |
| Max Vacuum | –45 kPa |
| Max Pressure | +50 kPa |
| Max Power | 0.4 W |
| Weight | 29 g |
| Model | BD‑05T01.51500B |
| Voltage Range | 5V / 12V |
| Max Flow Rate | 1L/min or 1.5 L/min |
| Max Positive Pressure | +50 kPa |
| Motor Type | Brushless DC Motor |
| Waterproof Rating | IP20 |
| Service Life | >8000 hours |
| Storage Temperature | –40 ℃ to 60 ℃ |
| Operating Temperature | –20 ℃ to 45 ℃ |
| Pump Head | PPS |
| Diaphragm / Valve | EPDM (Optional FKM) |
| Pump Body | Nylon |
| Dimensions | 42 × 35 × 23 mm |
| Component | Material / Performance |
| Lifetime | >8000 hours (clean environment) |
| Aspect | Options / Notes |
| Compact and lightweight | 42×35×23 mm |
| (brushless motor) ✓ Long lifespan | >8000 hours continuous duty |
