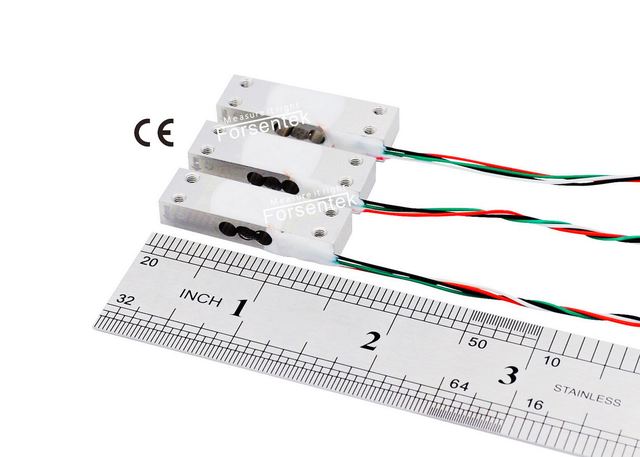

Micro Load Cell Sensor 10kg 5kg 2kg 1kg Miniature Weight Transducer
Model FMZK
Overview
Micro Load Cell Sensor 10kg 5kg 2kg 1kg Miniature Weight Transducer supplied by Forsentek Co. Limited. Key published specifications: Type Micro Load Cell; Output Analog Sensor; Capacity 10kg 5kg 3kg 2kg 1kg 0.5kg; Feature One Miniature Size. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Micro Load Cell |
|---|---|
| Output | Analog Sensor |
| Capacity | 10kg 5kg 3kg 2kg 1kg 0.5kg |
| Feature One | Miniature Size |
| Feature Two | High Accuracy |
| Feature Three | Light Weight |
| Feature Four | Affordable |
| Rated output | 1.0 mV/V |
| Excitation | 3-10 V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.05% of R.O. |
| Hysteresis | ±0.05% of R.O. |
| Nonrepeatability | ±0.05% of R.O. |
| Creep(3min) | ±0.05% of R.O. |
| Safe overload | 120% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -10...+60 o C |
| Temperature shift zero | ±0.03% of R.O./ o C |
| Temperature shift span | ±0.02% of R.O./ o C |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
