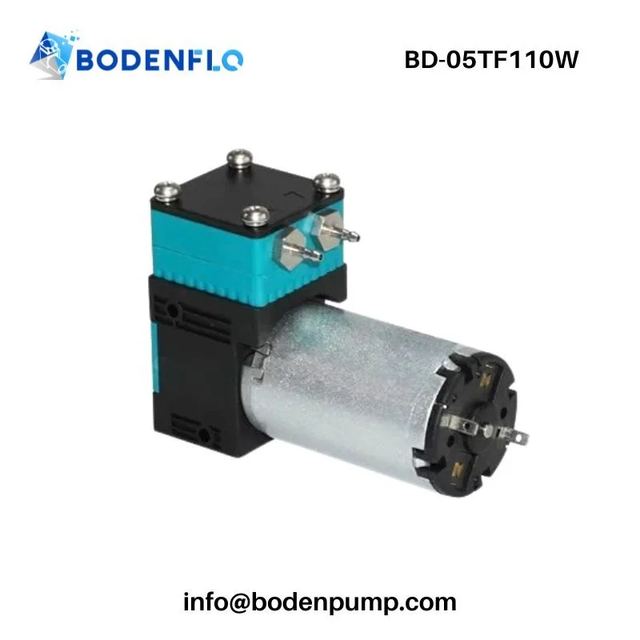

Micro Liquid Pump 110 mL/min Ink Pump BD-05TF110W
Model BD-05TF110W
Overview
Micro Liquid Pump 110 mL/min Ink Pump BD-05TF110W supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 6 V / 12 V / 24 V; Max Flow 110 mL/min (water), 3 L/min (gas); Max Vacuum –60 kPa; Max Pressure 2.5 bar (water), 1 bar (gas). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 6 V / 12 V / 24 V |
|---|---|
| Max Flow | 110 mL/min (water), 3 L/min (gas) |
| Max Vacuum | –60 kPa |
| Max Pressure | 2.5 bar (water), 1 bar (gas) |
| Max Power | 5 W |
| Weight | 200 g |
| Type | Small Liquid Pump |
| Structure | Diaphragm Pump |
| Voltage Range | 6V / 12V / 24V DC |
| Free Water Flow | 110 mL/min (0.029 gpm) |
| Water Pressure Head | >15 m |
| Water Suction Head | 7 m |
| Free Gas Flow | 3 L/min (0.106 cfm) |
| Motor Type | DC Brush Motor |
| Noise | 55 dB |
| Lifetime | 3000 h |
| Recommended Tubing Size | ID1.5 mm, OD3 mm |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
| Pump Head | PA66 engineering plastic |
| Diaphragm | EPDM |
| Valve | EPDM |
| Customization Item | Available Options |
| Wiring | Customized cable harness |
| Application | Automated reagent dosing system |
