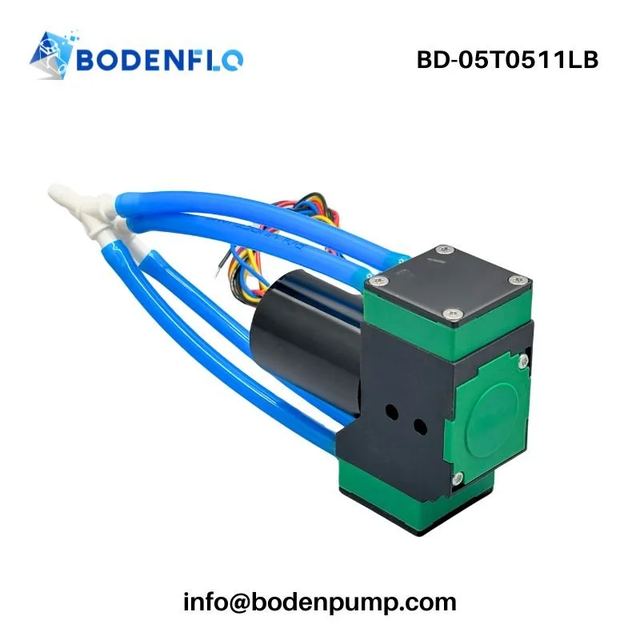

Micro Diaphragm Air Pump 11 L/min Double Head Quiet Pump for Medical Sampling BD-05T0511LB
Model BD-05T0511LB
Overview
Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong lists Micro Diaphragm Air Pump 11 L/min Double Head Quiet Pump for Medical Sampling BD-05T0511LB. Voltage 12 V DC, max pressure 2.2 bar and max power 18 W are among the specifications published.
Technical specifications
| Voltage | 12 V DC |
|---|---|
| Max Flow | 11 L/min (parallel connection), 7 L/min (series connection) |
| Max Vacuum | -70 kPa (parallel connection), -90 kPa (series connection) |
| Max Pressure | 2.2 bar |
| Max Power | 18 W |
| Weight | 230 g |
| Type | Air Diaphragm Pump |
| Structure | Double-Head Diaphragm Pump |
| Voltage Range | 12 V DC |
| Flow | 11 L/min (0.388 cfm) |
| Motor Type | Brushless DC Motor |
| No-Load Current | 0.32 A |
| Control Signal | 0–5 V PWM speed control, FG speed feedback |
| Noise | 60 dB |
| Lifetime | 8000 h |
| Dimensions | 70.5 × 31 × 67 mm |
| Recommended Tubing Size | ID4 mm / OD6 mm soft hose |
| Operating Environment | 5°C to 40°C |
| Medium Temperature | 10°C to 40°C |
| Pump Head | PA66 |
| Diaphragm / Valve | EPDM |
| Seal Design | Low leakage gas path design |
| Item | Customization Options |
| Branding | Customer-specific marking or private label |
| Application | Gas sampling module |
