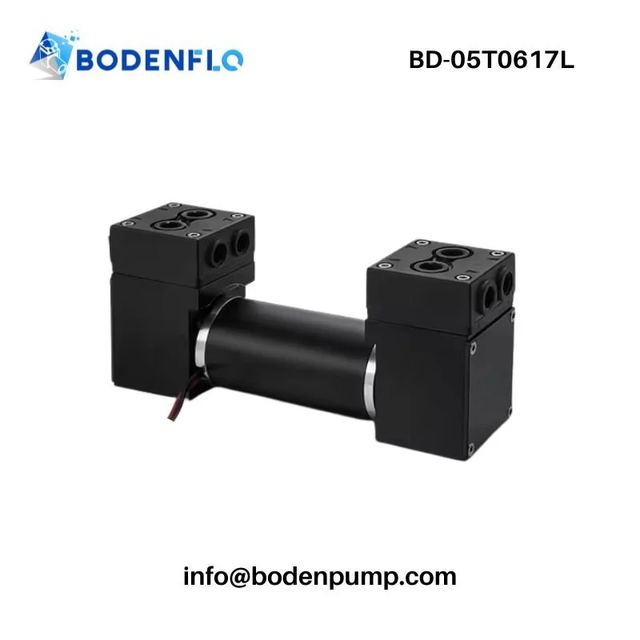

Medical Diaphragm Pump China 17L Dual-Head Small Electric Air Vacuum Pump BD-05T0617L
Model BD-05T0617L
Overview
Medical Diaphragm Pump China 17L Dual-Head Small Electric Air Vacuum Pump BD-05T0617L, listed by Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong. The listing gives voltage 12/24V, max flow 17L/min(Parallel)/7L/min(Series) and max vacuum –85 kPa(Parallel)/–95 kPa(Series).
Technical specifications
| Voltage | 12/24V |
|---|---|
| Max Flow | 17L/min(Parallel)/7L/min(Series) |
| Max Vacuum | –85 kPa(Parallel)/–95 kPa(Series) |
| Max Pressure | 1.7 Bar |
| Max Power | 14W |
| Weight | 943g |
| Voltage Range | 12 V / 24 V DC |
| Flow (Parallel) | 17 L/min |
| Negative Pressure (Parallel) | –85 kPa |
| Flow (Series) | 7 L/min |
| Negative Pressure (Series) | –95 kPa |
| Max Positive Pressure | 1.7 bar |
| Motor Type | Brushed DC Motor |
| Max Power Consumption | 14 W |
| IP Rating | IP00 |
| Service Life | 4,000 – 6,000 hours |
| Dimensions (L × W × H) | 197 × 46 × 77 mm |
| Component | Material / Performance |
| Pump Head | PPS – High-strength engineering thermoplastic |
| Valve | EPDM standard (FKM/FFKM optional) |
| Lifetime | 4,000–6,000 h continuous duty |
| Customization Aspect | Available Options / Notes |
| Diaphragm Materials | EPDM, PTFE |
| Valve Materials | EPDM, FKM, FFKM |
| Electrical Connector | Custom cable length and connectors |
