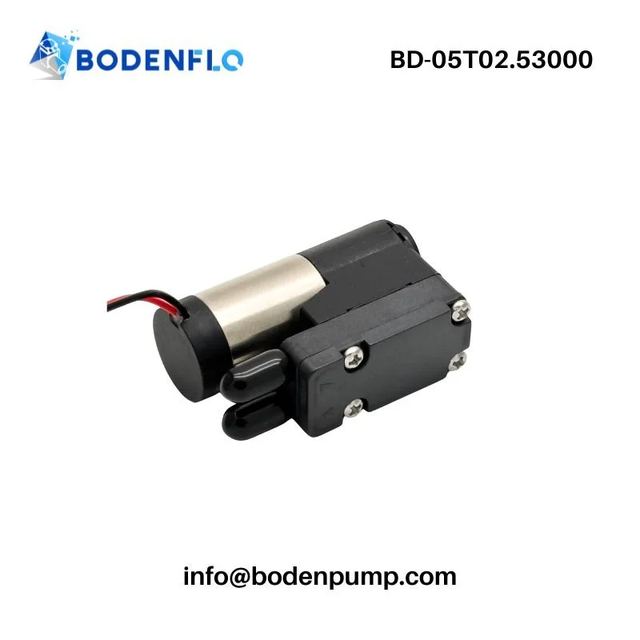

Medical Diaphragm Pump 5V Coreless Air Vacuum Pump BD-05T02.53000
Model BD-05T02.53000
Overview
Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong lists Medical Diaphragm Pump 5V Coreless Air Vacuum Pump BD-05T02.53000. Published figures include voltage 1V~5V, max flow 3L/min and max vacuum –60 kPa.
Technical specifications
| Voltage | 1V~5V |
|---|---|
| Max Flow | 3L/min |
| Max Vacuum | –60 kPa |
| Max Pressure | +70 kPa |
| Max Power | 1.6 W |
| Weight | 35 g |
| Voltage Range | 1–5 V DC |
| Max Flow Rate | 3 L/min |
| Max Negative Pressure | –60 kPa |
| Max Positive Pressure | +70 kPa |
| Motor Type | Brushed Coreless DC Motor |
| Waterproof Rating | IP20 |
| Service Life | 6,000–8,000 hours |
| Pump Head | PPS |
| Diaphragm/Valve | EPDM (Optional FKM) |
| Pump Body | Nylon |
| Dimensions | 43 × 29 × 16 mm |
| Component | Material / Performance |
| Customization Aspect | Options / Notes |
| Cable/Connector | Custom cable lengths, connector types |
