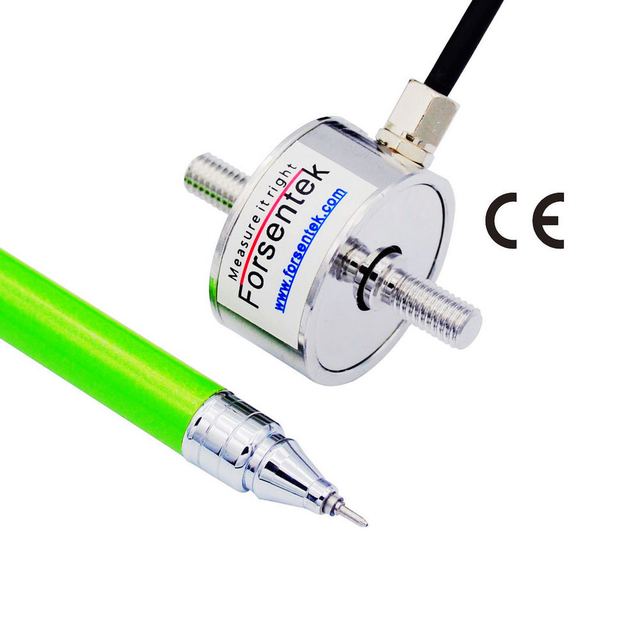

M5/M6 Rod End Tension Compression Transducer 1kN 500N 200N 100N 50N
Model FL25
Overview
M5/M6 Rod End Tension Compression Transducer 1kN 500N 200N 100N 50N supplied by Forsentek Co. Limited. Key published specifications: Type Rod End Load Cell; Output Analog Sensor; Male Thread M5/M6; Rated output 2.0mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Rod End Load Cell |
|---|---|
| Output | Analog Sensor |
| Male Thread | M5/M6 |
| Rated output | 2.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.5% of R.O. |
| Hysteresis | ±0.5% of R.O. |
| Nonrepeatability | ±0.2% of R.O. |
| Creep(10min) | ±0.1% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | -10...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.02% R.O./ o C |
| Temperature shift span | ±0.02% R.O./ o C |
| Input resistance | 700±30 ohms |
| Output resistance | 700±5 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP64 |
| Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Capacity | 5kg 10kg 20kg 50kg 100kg |
