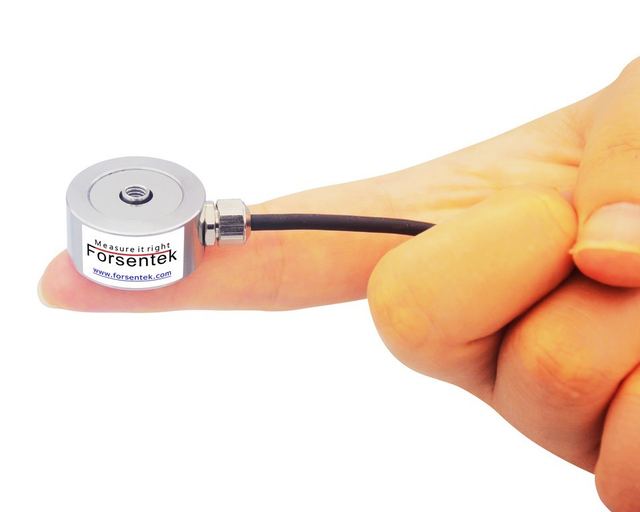

M4 Threaded Miniature Compression Load Cell 100kg 50kg 20kg 10kg
Model FCU
Overview
M4 Threaded Miniature Compression Load Cell 100kg 50kg 20kg 10kg supplied by Forsentek Co. Limited. Key published specifications: Measure Direction Tension And Compression; Type Pancake Load Cell; Force Range 100N 200N 500N 1kN; Material Stainless Steel. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Measure Direction | Tension And Compression |
|---|---|
| Type | Pancake Load Cell |
| Force Range | 100N 200N 500N 1kN |
| Material | Stainless Steel |
| Connection | M4 Tapped Hole |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.03% R.O./ o C |
| Temperature shift span | ±0.02% R.O./ o C |
| Input resistance | 380±30 ohms |
| Output resistance | 352±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Output | Analog Load Cell |
