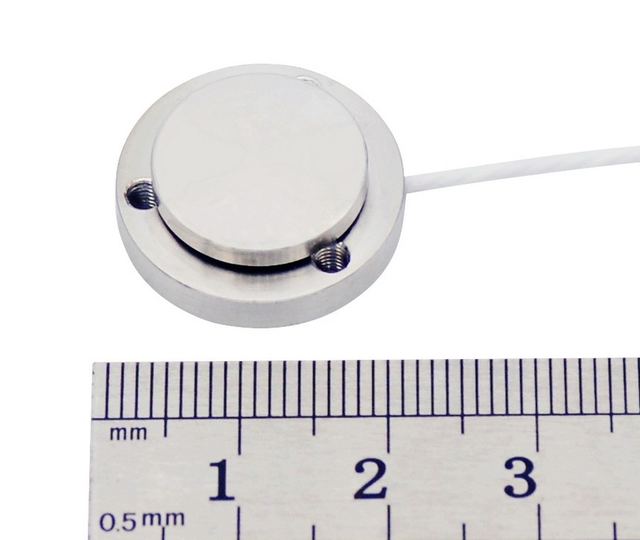

Low Profile Flat Compression Type Force Load Cell 500N 200N 100N
Model FCFP
Overview
Low Profile Flat Compression Type Force Load Cell 500N 200N 100N supplied by Forsentek Co. Limited. Key published specifications: Range 10kg 20kg 50kg; Type Flat Button; Output Analog Sensor; Rated output 1.0mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Range | 10kg 20kg 50kg |
|---|---|
| Type | Flat Button |
| Output | Analog Sensor |
| Rated output | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±1% of full capacity |
| Hysteresis | ±1% of full capacity |
| Nonrepeatability | ±0.5% of full capacity |
| Creep(3min) | ±0.3% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.05% R.O./ o C |
| Temperature shift span | ±0.05% R.O./ o C |
| Input resistance | 1000 ±100 ohms |
| Output resistance | 1000 ±100 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Material | Stainless Steel |
