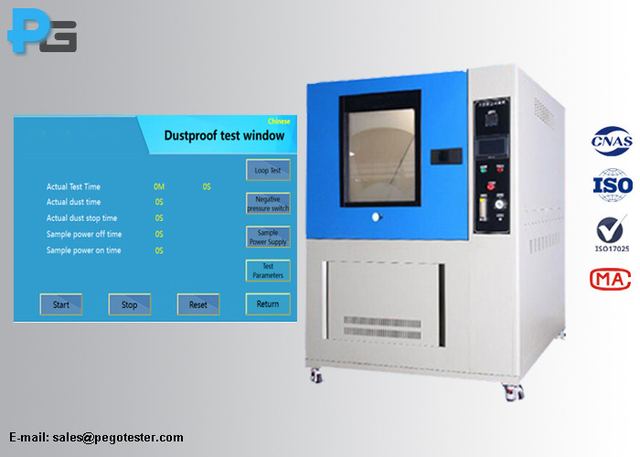

IP5X / IP6X Dust Test Chamber PLC Touch Screen Control With Vacuum System
Model IP56X
Overview
IP5X / IP6X Dust Test Chamber PLC Touch Screen Control With Vacuum System supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-Lab Calibration Certificate; Standard IEC60529, IEC60598; IP Test Grade IP5X, IP6X; Accessories Talcum Powder, 50μm/75μm Metal Meshed Sieve. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Standard | IEC60529, IEC60598 |
| IP Test Grade | IP5X, IP6X |
| Accessories | Talcum Powder, 50μm/75μm Metal Meshed Sieve |
| Control Unit | 7'' Touch Screen+PLC |
| Working Power | AC220V/50Hz |
| Working dimension(mm) | 1000*1000*1000(L*D*H) |
| Outer dimension(mm) | 1450*1250*2030(L*D*H) |
| Temperature range | RT+10~+40℃ |
| Airflow velocity | ≤ 2.5m/s |
| Time range | 0~999H(adjustable) |
| Vibration Time | 0-999H(adjustable) |
| Time Accuracy | ±1s |
| Dust concentration | 2~4kg/m 3 |
| Vacuum degree | 0-10Kpa (adjustable) |
| Evacuation speed | 0-60L/H (adjustable) |
| Circulatory system | Dust recycling |
| Working condition | Temperature:15℃～35℃, humidity:≤85%R.H.,pressure: 86kPa～106kPa |
| Power socket for EUT | IP66, 220V/16A |
| Power supply | 1.5KW, AC220V±10%, 50Hz (single phase) |
| Temperature | 15℃～35℃, humidity:≤85%R.H.,pressure: 86kPa～106kPa |
| Material | metal and nylon |
| Diameter | 50mm (test probe 1), 12.5mm (test probe 2) |
| Weight | 500g (test probe 1), 15g (test probe 2) |
