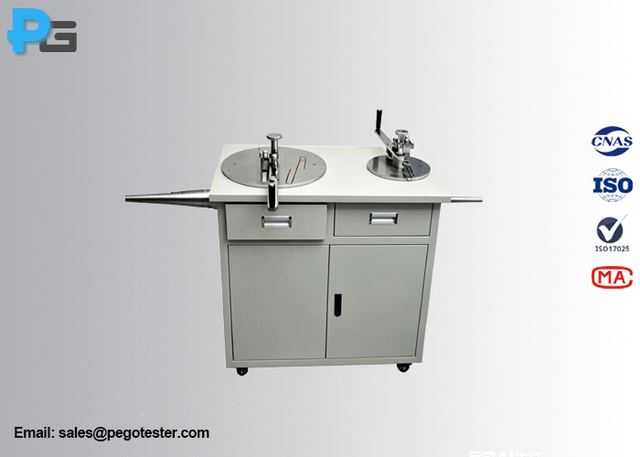

IEC60851-3 Rectangular Wire Mandrel Winding Test Apparatus Bending arm length 300mm and 400mm
Model PG-MWT
Overview
IEC60851-3 Rectangular Wire Mandrel Winding Test Apparatus Bending arm length 300mm and 400mm supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-Lab Calibration Certificate; Standard IEC60851-3; Flange Diameter Ø180mm And Ø260mm; Bending Arm Length 300mm And 400mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Standard | IEC60851-3 |
| Flange Diameter | Ø180mm And Ø260mm |
| Bending Arm Length | 300mm And 400mm |
| Power Supply | 220V/50hz |
| Mandrel (standard diameters) | 62pcs, |
| Jerk speed | ≥3m/s |
| Max. Operating pressure | 0.8Mpa |
| Scraper diameter | (0.23±0.01)mm |
| Scrape speed of scraping device | (400±40)mm/min |
| Test voltage | DC (6.5±0.5)V |
| Rotating speed | 80±5r/min |
| Test length | 500mm |
| Input power | AC 220V±10% 50Hz |
| Wind speed | 100±10r/min |
