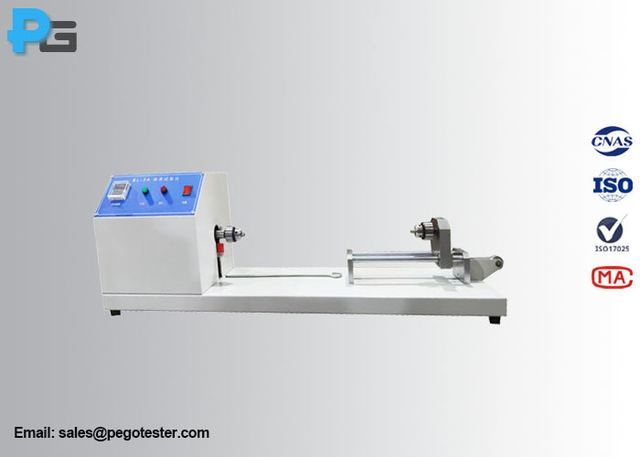

IEC60851-3 Enamelled Round Wire Peer Test Apparatus Input power AC 220V±10% 50Hz
Model PG-WPTA
Overview
IEC60851-3 Enamelled Round Wire Peer Test Apparatus Input power AC 220V±10% 50Hz supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-Lab Calibration Certificate; Standard IEC60851-3; Rotating Speed 80±5r/min; Test Length 500mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Standard | IEC60851-3 |
| Rotating Speed | 80±5r/min |
| Test Length | 500mm |
| Input Power | AC 220V±10% 50Hz |
| Rotate times | 1-999r settable |
| Power consumption | <150W |
| Dimension and weight | L1200*W2200*H3500mm/35KG |
| Jerk speed | ≥3m/s |
| Max. Operating pressure | 0.8Mpa |
| Scraper diameter | (0.23±0.01)mm |
| Scrape speed of scraping device | (400±40)mm/min |
| Test voltage | DC (6.5±0.5)V |
| Flange diameter | Ø180mm and Ø260mm |
| Bending arm length | 300mm and 400mm |
| Wind speed | 100±10r/min |
| Power Supply | AC220V±10%, 50Hz |
