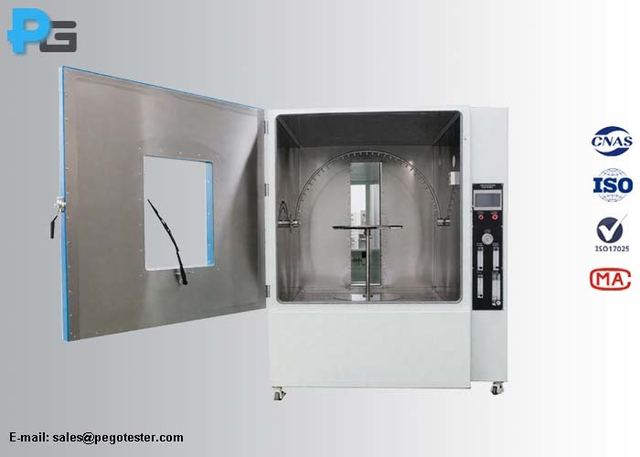

IEC60529 Water Resistance Test Chamber for IPX1-6
Model PG-IPX16B
Overview
IEC60529 Water Resistance Test Chamber for IPX1-6 supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification CNAS Calibration Certificate; Conform To IEC60529; Test IP Grade IPX1, IPX2, IPX3, IPX4, IPX5, IPX6; Control Units PLC+touch Screen. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CNAS Calibration Certificate |
|---|---|
| Conform To | IEC60529 |
| Test IP Grade | IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 |
| Control Units | PLC+touch Screen |
| Material | SUS304 Stainless Steel |
| Water Recyle | Yes |
| Model | IPX16B |
| Control System | 7 inch touch screen + PLC |
| Inner Chamber Dimensions | 1300×1300×1450mm (W×D×H) |
| Turntable Capacity | Ø600mm, 50KG bearing capacity |
| Power Requirements | 380V/50Hz (3 phase 4 wires + protective ground) |
| Test Time Range | 0-999 minutes |
| Weight | Approximately 380KG |
| Standard | IEC60695-10-2, IEC60335, IEC60601 |
| Temperature | R.T.~300℃ |
| Working Power | AC220V/50Hz |
| Outer size | 2100*2100*2150mm (Customizable) |
| Inner Size | 1800*1800*2000mm (Customized) |
| Application | mobile, household appliance,auto parts |
