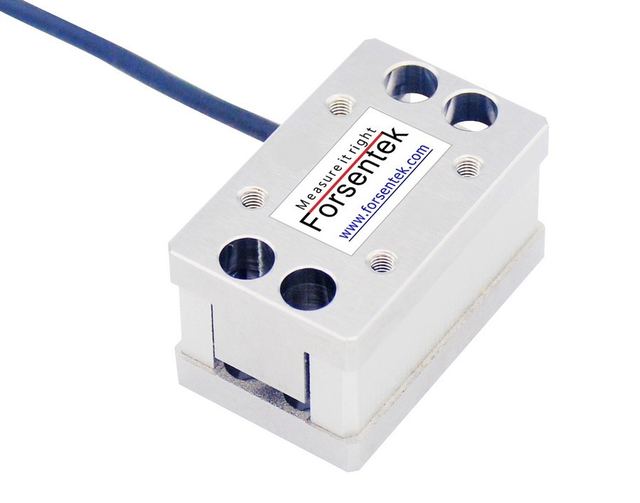

Flange Type Tension Compression Load Cell 50kg 30kg 20kg 10kg 5kg
Model FXFP
Overview
Flange Type Tension Compression Load Cell 50kg 30kg 20kg 10kg 5kg supplied by Forsentek Co. Limited. Key published specifications: Load Direction Traction And Compression; Structure Flange-to-Flange; Capacity 5kg 10kg 20kg 30kg 50kg; Output Analog Transducer. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Load Direction | Traction And Compression |
|---|---|
| Structure | Flange-to-Flange |
| Capacity | 5kg 10kg 20kg 30kg 50kg |
| Output | Analog Transducer |
| Material | Stainless Steel |
| Rated output | 1.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.2% of capacity |
| Hysteresis | ±0.2% of capacity |
| Nonrepeatability | ±0.1% of capacity |
| Creep(5min) | ±0.05% of capacity |
| Safe overload | 150% of capacity |
| Ultimate overload | 200% of capacity |
| Compensated temperature | -10...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.02% R.O./ o C |
| Temperature shift span | ±0.02% R.O./ o C |
| Input resistance | 385±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP62 |
| Material of element | Stainless steel |
