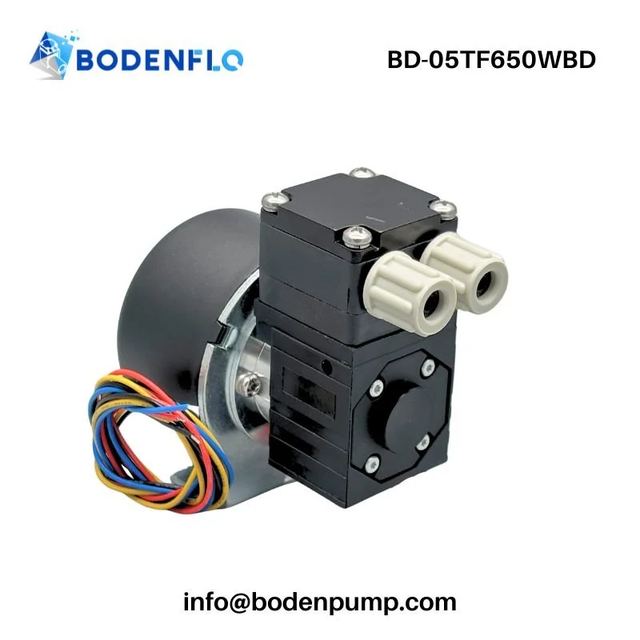

Diaphragm Water Pump 650mL/min 5 Bar PWM Liquid Vacuum Pump BD-05TF650WBD BODENFLO
Model BD-05TF650WBD
Overview
Diaphragm Water Pump 650mL/min 5 Bar PWM Liquid Vacuum Pump BD-05TF650WBD BODENFLO supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 12 V / 24 V DC; Max Flow 650 ± 100 mL/min (water), 0.8 L/min (gas); Max Vacuum –28 kPa; Load Current 0.8A/0.4A. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 12 V / 24 V DC |
|---|---|
| Max Flow | 650 ± 100 mL/min (water), 0.8 L/min (gas) |
| Max Vacuum | –28 kPa |
| Load Current | 0.8A/0.4A |
| Weight | 290 g |
| Type | Micro Gas Liquid Pump |
| Structure | Diaphragm Pump |
| Voltage Range | 12 V / 24 V |
| Free Water Flow | 650 ± 100 mL/min (0.172 ± 0.026 gpm) |
| Water Pressure Head | >12 m |
| Water Suction Head | 4 m |
| Free Gas Flow | 0.8 L/min (0.028 cfm) |
| Max Gas Pressure | +45 kPa (6.5 psi / 450 mbar) |
| Motor Type | DC Brushless Motor |
| Noise | 55 dB |
| Lifetime | 10000 h |
| Recommended Tubing Size | ID4 mm / OD6 mm |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
| Pump Head | PPS |
| Diaphragm | EPDM |
| Valve | EPDM |
| Item | Customization Options |
| Branding | Private label or customer-specific marking |
| Control Signal | 0–5 V PWM speed control and FG output |
