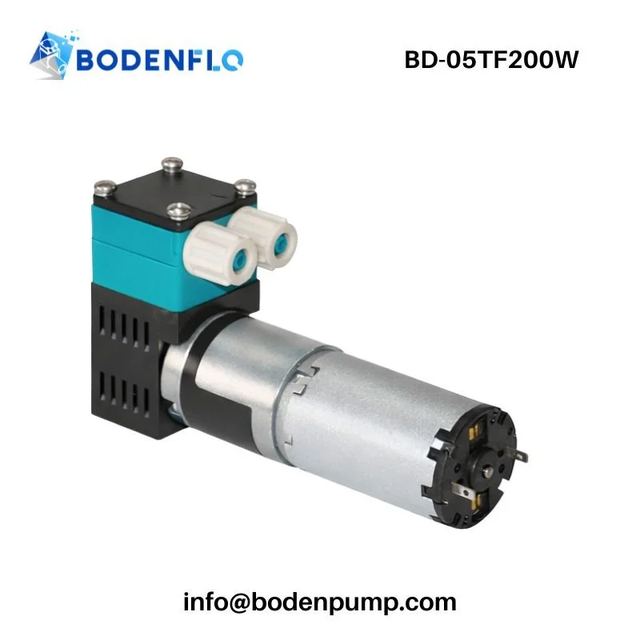

Diaphragm Liquid Pump 200 mL/min Low Noise Coding Machine Pump BD-05TF200W BODENFLO
Model BD-05TF200W
Overview
Diaphragm Liquid Pump 200 mL/min Low Noise Coding Machine Pump BD-05TF200W BODENFLO, listed by Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong. Voltage 6/12/24V, max water flow 200 mL/min and max water pressure 8 bar are among the specifications published.
Technical specifications
| Voltage | 6/12/24V |
|---|---|
| Max Water Flow | 200 mL/min |
| Max Water Pressure | 8 bar |
| Max Vacuum | –35 kPa |
| Max Power | 12 W |
| Weight | 430 g |
| Type | Micro Diaphragm Liquid Pump |
| Structure | Single-Head Diaphragm Pump |
| Free Water Flow | 200 mL/min (0.053 gpm) |
| Water Pressure Head | >15 m |
| Water Suction Head | 5 m |
| Motor Type | DC Brush Motor |
| Noise | 55 dB |
| Lifetime | 3000 h |
| Recommended Tubing Size | ID4mm, OD6mm |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 80°C |
| Pump Head | PA66 engineering plastic |
| Diaphragm | EPDM |
| Valve | EPDM |
| Customization Item | Available Options |
| Wiring | Customized cable harness |
| Branding | OEM label and product marking |
| Hole depth | 5.6 mm |
