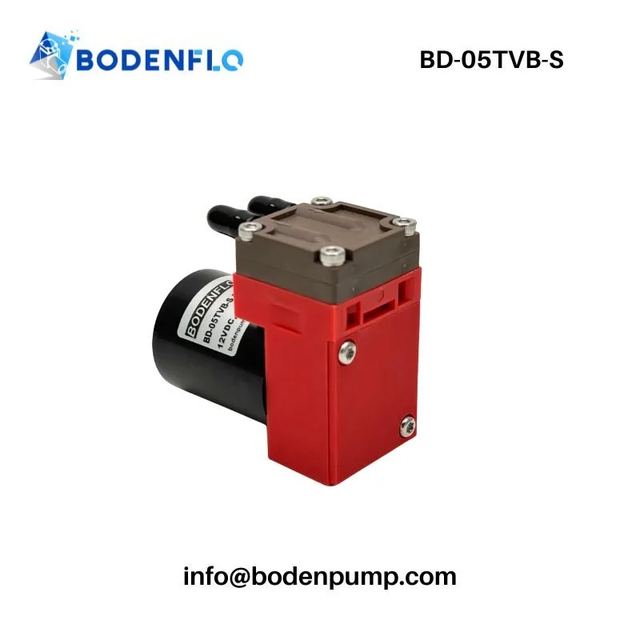

Diaphragm Brushless Pump DC 12V/24V Quiet Micro Vacuum Pump for Medical and Samping BD-05TVB-S
Model BD-05TVB-S
Overview
Diaphragm Brushless Pump DC 12V/24V Quiet Micro Vacuum Pump for Medical and Samping BD-05TVB-S supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 12/24V; Max Flow 4.6L/min; Max Vacuum –70 kPa; Max Pressure 1~1.5Bar. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 12/24V |
|---|---|
| Max Flow | 4.6L/min |
| Max Vacuum | –70 kPa |
| Max Pressure | 1~1.5Bar |
| Max Power | 5 W |
| Weight | 148g |
| Voltage Range | 12 V / 24 V DC |
| Max Negative Pressure | –70 kPa (525mmHg) |
| Max Positive Pressure | 1.0 – 1.5 bar |
| Motor Type | High-end DC brushless motor |
| Waterproof Level | IP20 |
| Service Life | >10,000 hours |
| Dimensions (L × W × H) | 60.4 × 32 × 55 mm |
| Component | Material |
| Pump Body | Nylon – lightweight and impact-resistant |
| Lifetime | >10,000 hours in clean, dry environments |
| Voltage Configuration | 12V air pump or 24V air pump |
| Diaphragm Material | EPDM (Standard), FKM (Custom) |
| Connector Type | OEM-specified cable and plug |
| Compact and efficient | only 148 g |
