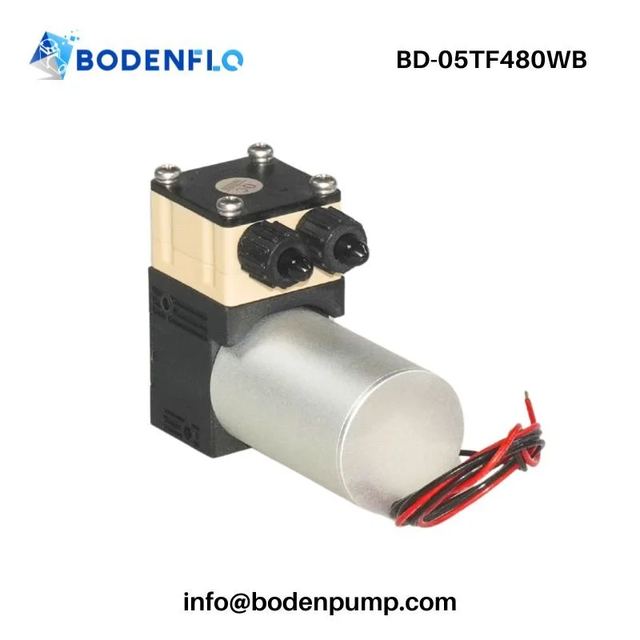

DC Liquid Pump 480mL/min PWM Speed Adjustable CIJ Printer Pump BD-05TF480WB BODENFLO
Model BD-05TF480WB
Overview
DC Liquid Pump 480mL/min PWM Speed Adjustable CIJ Printer Pump BD-05TF480WB BODENFLO supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Max Flow 480 mL/min (water), 4 L/min (gas); Max Vacuum –60 kPa; Max Pressure 2.5 bar (water), 80 kPa (gas); Max Power 7 W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Max Flow | 480 mL/min (water), 4 L/min (gas) |
|---|---|
| Max Vacuum | –60 kPa |
| Max Pressure | 2.5 bar (water), 80 kPa (gas) |
| Max Power | 7 W |
| Weight | 200 g |
| Type | DC Liquid Pump |
| Structure | Diaphragm Pump |
| Voltage Range | 6 V / 12 V / 24 V |
| Free Water Flow | 480 mL/min (0.127 gpm) |
| Water Pressure Head | >15 m |
| Water Suction Head | 6 m |
| Free Gas Flow | 4 L/min (0.141 cfm) |
| Max Gas Pressure | 80 kPa (11.6 psi / 800 mbar) |
| Motor Type | DC Brushless Motor |
| Noise | 55 dB |
| Lifetime | 8000 h |
| Recommended Tubing Size | ID4 mm / OD6 mm |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
| Pump Head | PA66 |
| Diaphragm | EPDM |
| Valve | EPDM |
| Item | Customization Options |
| Application | Ink circulation system |
