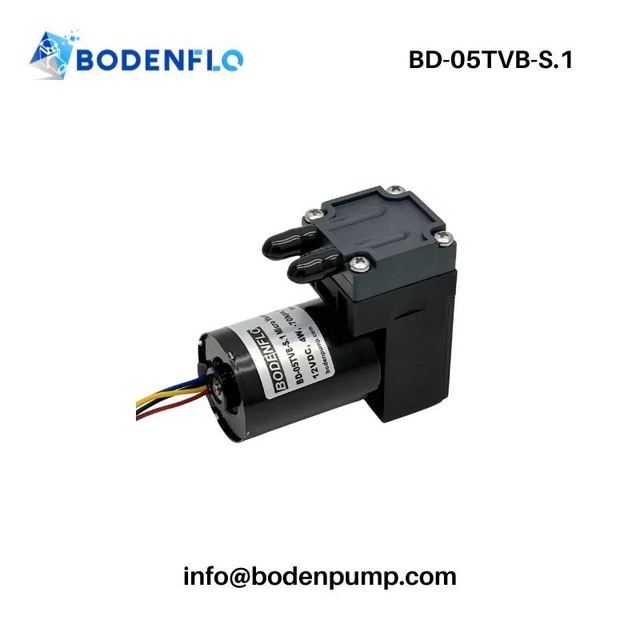

DC Air Pump 12V 24V Vacuum Suction Pump 5.5L BD-05TVB-S.1
Model BD-05TVB-S.1
Overview
Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong lists DC Air Pump 12V 24V Vacuum Suction Pump 5.5L BD-05TVB-S.1. Voltage 12/24V, max flow 5.5L/min and max vacuum –70 kPa are among the specifications published.
Technical specifications
| Voltage | 12/24V |
|---|---|
| Max Flow | 5.5L/min |
| Max Vacuum | –70 kPa |
| Max Pressure | 1~1.5Bar |
| Max Power | 4 W |
| Weight | 148g |
| Voltage Range | 12 V / 24 V |
| Max Negative Pressure | –70 kPa |
| Max Positive Pressure | 1~1.5 Bar |
| Motor Type | Brushless DC Motor |
| IP Rating | IP20 |
| Service Life | >8000 hours |
| Dimensions | 60.4 × 32 × 55 mm |
| Component | Material / Notes |
| Pump Head | PPS – High-temperature, corrosion resistant |
| Valve | EPDM (FKM optional) |
| Pump Body | Nylon – Strong, lightweight, durable |
| Customization Aspect | Options / Notes |
| Voltage / Connector | 12V or 24V, custom cables and connectors |
| Compact design with large output | up to 5.5 L/min flow |
| High vacuum performance | –70 kPa |
| Low power consumption | only 4 W |
