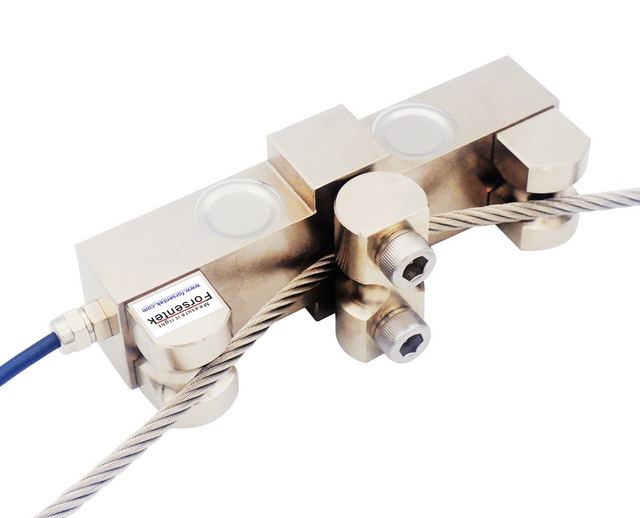

Crane Rope Tension Sensor Wire Rope Tension Monitoring Transducer
Model FZTA
Overview
Crane Rope Tension Sensor Wire Rope Tension Monitoring Transducer supplied by Forsentek Co. Limited. Key published specifications: Type Clamp-on Load Cell; Capacity 10kN 20kN 50kN 100kN 200kN; Output 0-5V 0-10V 4-20mA; Material Alloy Steel. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Clamp-on Load Cell |
|---|---|
| Capacity | 10kN 20kN 50kN 100kN 200kN |
| Output | 0-5V 0-10V 4-20mA |
| Material | Alloy Steel |
| Function | Rope Overload Protection |
| Rated Capacity | 10kN 20kN 50kN 100kN 200kN |
| Zero balance | ±5% of rated output |
| Nonlinearity | ±0.5% of rated capacity |
| Hysteresis | ±0.5% of rated capacity |
| Nonrepeatability | ±0.2% of rated capacity |
| Creep(5min) | ±0.05% of rated capacity |
| Safe overload | 150% of rated capacity |
| Ultimate overload | 200% of rated capacity |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.01% R.O./ o C |
| Temperature shift span | ±0.01% R.O./ o C |
| Ingress protection | IP65 |
| Material of element | Alloy steel |
| Cable | 10/20kN: Ø5*3000mm 50/100/200kN: Ø5.8*6000mm |
