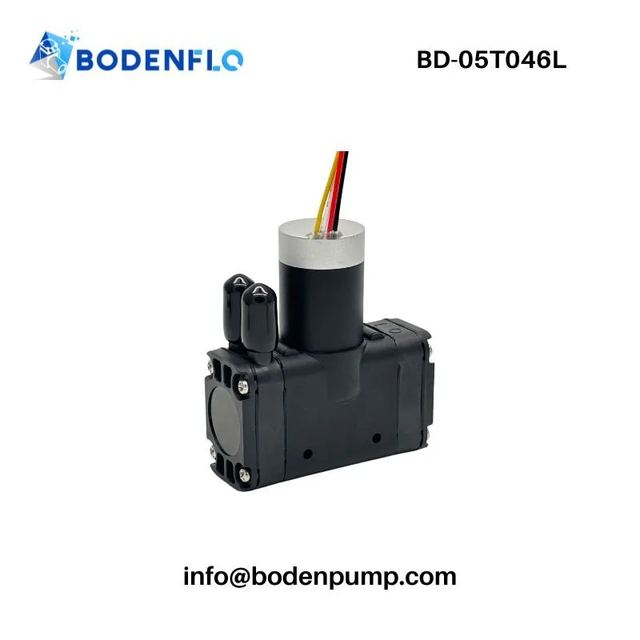

Coreless Diaphragm Pump Best Negative Pressure Pump BD-05T046L
Model BD-05T046L
Overview
Coreless Diaphragm Pump Best Negative Pressure Pump BD-05T046L supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 1-5V; Max Flow 6L/min; Max Vacuum –63 kPa; Max Power 5 W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 1-5V |
|---|---|
| Max Flow | 6L/min |
| Max Vacuum | –63 kPa |
| Max Power | 5 W |
| Weight | 98g |
| Voltage Range | 1–5 V DC |
| Max Flow Rate | 6 L/min |
| Max Negative Pressure | –63 kPa |
| Motor Type | Coreless DC Motor |
| Service Life | >6,000 hours |
| IP Rating | IP00 |
| Storage Temperature | –40 ℃ to 60 ℃ |
| Operating Temperature | 0 ℃ to 45 ℃ |
| Pump Head Material | Nylon |
| Diaphragm/Valve | EPDM (FKM optional) |
| Pump Body | Nylon |
| Dimensions | 55 × 22 × 58 mm |
| Customization Aspect | Available Options / Notes |
| Motor Voltage | 3.3 V, 5 V compatible versions |
| Color / Body Finish | Available for volume orders |
