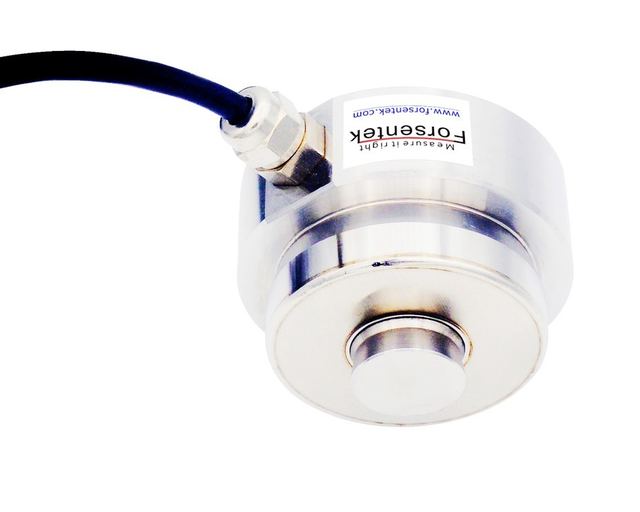

Compression Load Cell 1000kN 2000kN Force Transducer 3000kN 5000kN
Model FCRN
Overview
Compression Load Cell 1000kN 2000kN Force Transducer 3000kN 5000kN supplied by Forsentek Co. Limited. Key published specifications: Type Ring Torsion Load Cell; Force Range 0-5000kN; Material Stainless Steel; Rated output 2.85mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Ring Torsion Load Cell |
|---|---|
| Force Range | 0-5000kN |
| Material | Stainless Steel |
| Rated output | 2.85mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Creep(3min) | ±0.05% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -20...+65 o C |
| Temperature shift zero | ±0.05% R.O./10 o C |
| Temperature shift span | ±0.05% R.O./10 o C |
| Input resistance | 4450±200 ohms |
| Output resistance | 4000±10 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP67 |
| Material of element | Stainless steel |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Output | Analog |
