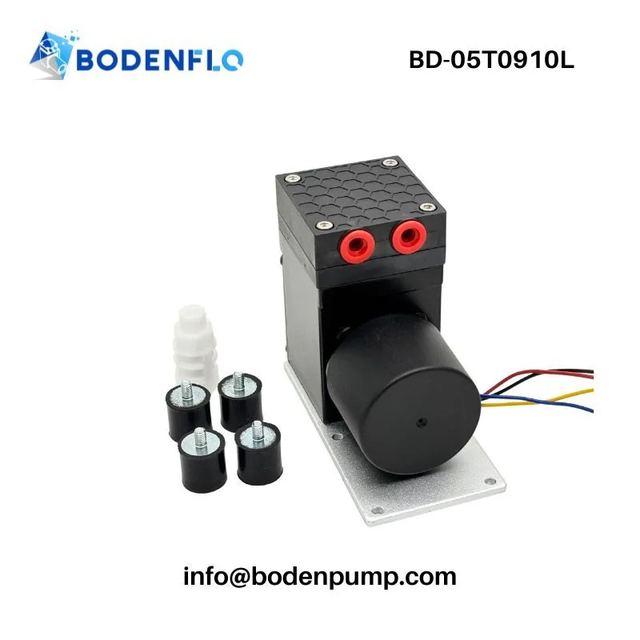

Brushless Vacuum Pump 10L/min 12/24V DC Small Air Diaphragm Pump BD-05T0910L
Model BD-05T0910L
Overview
Brushless Vacuum Pump 10L/min 12/24V DC Small Air Diaphragm Pump BD-05T0910L supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 12/24V; Max Flow 10L/min; Max Vacuum –85 kPa; Max Pressure 3 Bar. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 12/24V |
|---|---|
| Max Flow | 10L/min |
| Max Vacuum | –85 kPa |
| Max Pressure | 3 Bar |
| Max Power | 16W |
| Weight | 450g |
| Voltage Options | 12 V / 24 V DC |
| Maximum Flow Rate | > 10 L/min |
| Maximum Negative Pressure | > –85 kPa |
| Maximum Positive Pressure | > 3 bar |
| Noise Level | 65 dB |
| Motor Type | Brushless DC Motor |
| Maximum Power | 16 W |
| IP Rating | IP20 |
| Service Life | > 8,000 hours |
| Dimensions (L × W × H) | 98 × 50 × 80 mm |
| Component | Material / Performance |
| Pump Head | PPS – high-strength, chemical-resistant thermoplastic |
| Pump Body | Engineering plastics – durable, lightweight |
| Customization Aspect | Available Options / Notes |
| Label / Branding | Custom product labeling available |
