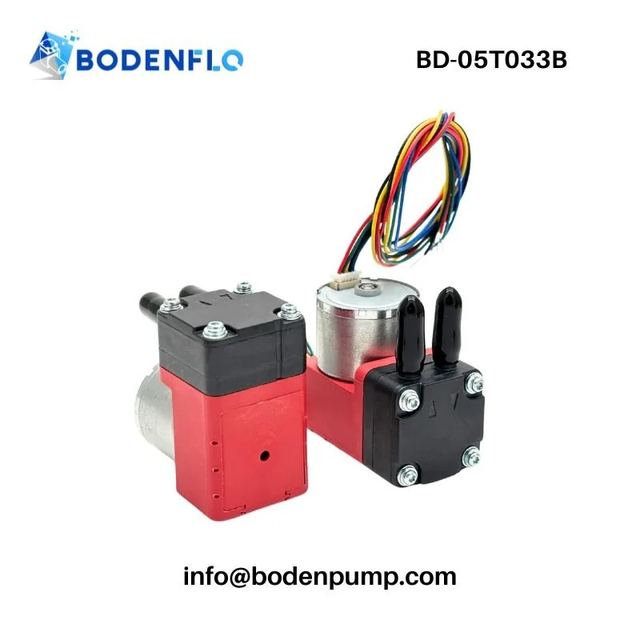

Brushless Diaphragm Pump 3L 56g Small Vacuum Pump BD-05T033B
Model BD-05T033B
Overview
Brushless Diaphragm Pump 3L 56g Small Vacuum Pump BD-05T033B supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 12V/24V; Max Flow 2-3L/min; Max Vacuum –55 kPa; Max Pressure +90 kPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 12V/24V |
|---|---|
| Max Flow | 2-3L/min |
| Max Vacuum | –55 kPa |
| Max Pressure | +90 kPa |
| Max Power | 1.6 W |
| Weight | 56g |
| Voltage Range | 12 V / 24 V DC |
| Maximum Flow Rate | 2–3 L/min |
| Maximum Negative Pressure | -55 kPa |
| Maximum Positive Pressure | 90 kPa |
| Motor Type | Brushless DC Motor |
| Maximum Power | 1.6 W |
| Waterproof Level | IP00 / IP40 |
| Storage Temperature | -40 ℃ to 60 ℃ |
| Operating Temperature | -10 ℃ to 45 ℃ |
| Pump Head Material | PPS (engineering thermoplastic) |
| Diaphragm / Valve | EPDM |
| Pump Body Material | Nylon |
| Dimensions (L×W×H) | 35.5 × 24.5 × 41 mm |
| Lifetime (Brushless Motor) | 8,000 hours continuous duty |
| Component | Material / Performance |
| Lifetime | 8,000 hours continuous duty with brushless motor |
| Customization Aspect | Available Options / Notes |
| Diaphragm Materials | EPDM standard; FKM optional |
| Label / Branding | OEM custom product labeling |
| Voltage & Motor Config | Standard 12V/24V brushless motor |
| Integration Support | Engineering guidance for device integration |
| Dual voltage input | 12V or 24V for flexible integration |
| with simple 5-wire connections | 24V Version |
