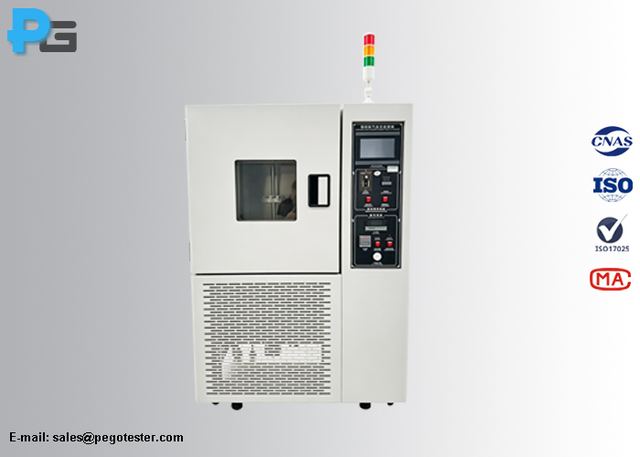

ASTM-D5423 Forced-air Aging Test Chamber, 100 to 200 Air Changes Per Hour
Model PG-OVA
Overview
ASTM-D5423 Forced-air Aging Test Chamber, 100 to 200 Air Changes Per Hour supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification CNAS Calibration Certificate; Temperature Range R.T.+10℃~300℃; Air Exchange Rate 100–200 Times/hour; Air Velocity 0.5～1.5m/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CNAS Calibration Certificate |
|---|---|
| Temperature Range | R.T.+10℃~300℃ |
| Air Exchange Rate | 100–200 Times/hour |
| Air Velocity | 0.5～1.5m/s |
| Air Exchange Method | Forced Ventilation By Fan |
| Test Duration | 1min-99h |
| Working Power | AC220V±10%, 50Hz |
| Temperature fluctuation | ≤±0.5℃ (No-load) |
| Temperature uniformity | ≤±2℃(No-load) |
| Temperature rise speed | 1.0～3.0℃/min |
| Air exchange time | 1min-99h (settable) |
| Sample turntable | 2-tier stainless steel rotating rack |
| Rotating speed | 1-10r/min (360 0 rotation) |
| Working power (input) | AC220V, 50Hz |
| Voltage range | 0~5KV (AC and DC) |
| Leakage current | 0~100mA |
| Standard | IEC60335, IEC60598-1, IEC60065 and IEC60950 |
| Test current | 5~32A/5~70A |
| Resistance range | 10.0-200mΩ (32A)/200~600mΩ (10A) |
