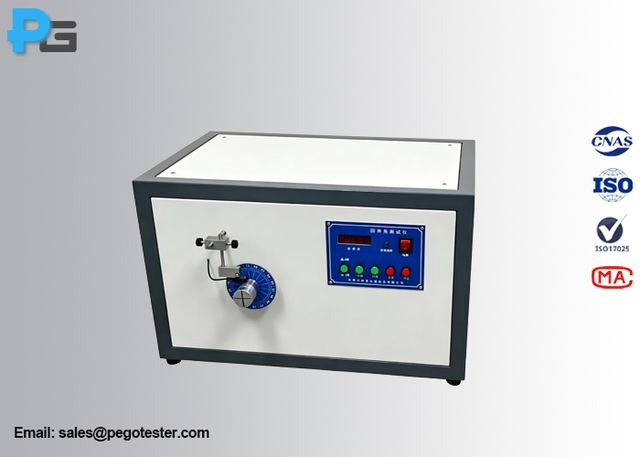

7r/min Winding Wires Springiness Test Apparatus
Model PG-STA
Overview
7r/min Winding Wires Springiness Test Apparatus supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification Third-Lab Calibration Certificate; Length of sample 1m; Springiness speed 7±0.5r/min; Weight See table 2. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | Third-Lab Calibration Certificate |
|---|---|
| Length of sample | 1m |
| Springiness speed | 7±0.5r/min |
| Weight | See table 2 |
| Mandrel | See table 1 |
| Number of turns | 5.5 (NEMA standard: 3turns) |
| Power Supply | AC220V±10%, 50Hz |
| Power consumption | <80W |
| Operating environment | Temperature: 0-40 ℃ , relative humidity: ≤85% |
| Dimension and weight | L500*W335*300mm/25KG |
| Standard | IEC60851-3 |
| Jerk speed | ≥3m/s |
| Max. Operating pressure | 0.8Mpa |
| Scraper diameter | (0.23±0.01)mm |
| Scrape speed of scraping device | (400±40)mm/min |
| Test voltage | DC (6.5±0.5)V |
| Flange diameter | Ø180mm and Ø260mm |
| Bending arm length | 300mm and 400mm |
| Rotating speed | 80±5r/min |
| Test length | 500mm |
| Input power | AC 220V±10% 50Hz |
