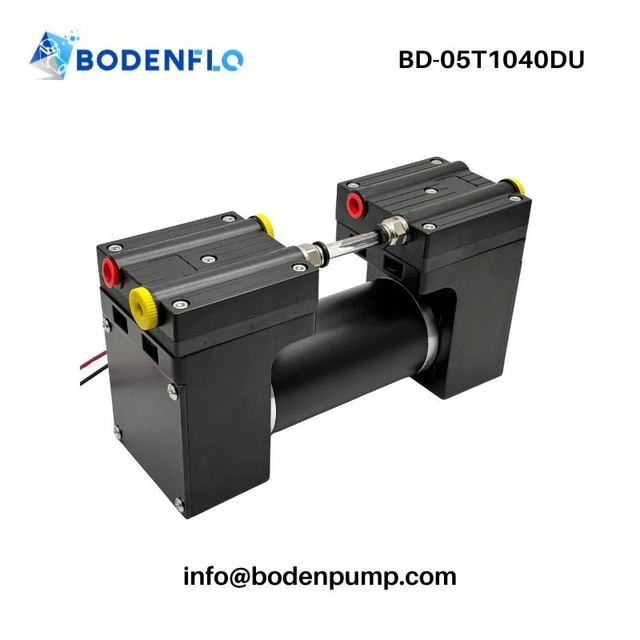

60Lpm Aluminum Double Head Air Pump -85kpa DC 12V 24V Vacuum Pump Stable Flow BD-05T1040DU
Model BD-05T1040DU
Overview
60Lpm Aluminum Double Head Air Pump -85kpa DC 12V 24V Vacuum Pump Stable Flow BD-05T1040DU supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 24V; Max Flow 40 L/min(series) / 60 L/min(parallel); Max Vacuum –85 kPa(parallel) / –98 kPa(series); Max Pressure 2Bar. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 24V |
|---|---|
| Max Flow | 40 L/min(series) / 60 L/min(parallel) |
| Max Vacuum | –85 kPa(parallel) / –98 kPa(series) |
| Max Pressure | 2Bar |
| Motor | DC High-End Brushed |
| Max Power | 100W |
| Weight | 3.32kg |
| Voltage Range | 24 V DC |
| Parallel Connection | 60 L/min, –85 kPa |
| Series Connection | 40 L/min, –98 kPa |
| Max Positive Pressure | 2 bar |
| Motor Type | High-end brushed DC motor |
| IP Rating | IP20 |
| Service Life | >8,000 hours continuous duty |
| Dimensions (L×W×H) | 231 × 81 × 120 mm |
| Component | Material / Performance |
| Pump Head | Aluminum alloy, NPT1/4 |
| Diaphragm/Valve | EPDM standard (PTFE/FKM optional) |
| Pump Body | Aluminum alloy with electrophoresis coating |
| Lifetime | >8,000 hours continuous duty |
| Customization Aspect | Available Options / Notes |
| Diaphragm Materials | EPDM standard, PTFE/FKM optional |
| Connector Type | Custom fittings or ports available |
| Label / Branding | OEM labeling for private branding |
| Cable / Connector | Custom cable length and type |
