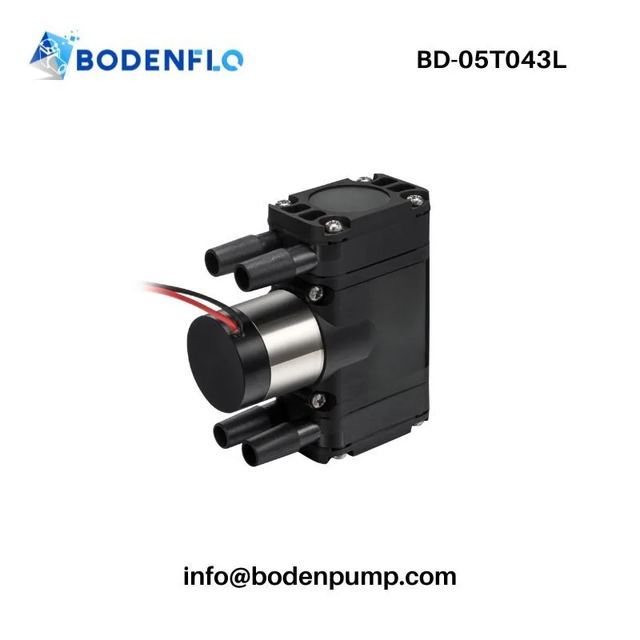

5V Vacuum Pump -88kpa 3L Coreless Motor Eccentric Diaphragm Pump BD-05T043L
Model BD-05T043L
Overview
5V Vacuum Pump -88kpa 3L Coreless Motor Eccentric Diaphragm Pump BD-05T043L, from Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong. The listing gives voltage 5V, max flow 3L/min and max vacuum –88 kPa.
Technical specifications
| Voltage | 5V |
|---|---|
| Max Flow | 3L/min |
| Max Vacuum | –88 kPa |
| Max Power | 5 W |
| Weight | 99g |
| Voltage Range | 5 V DC |
| Max Flow (float meter) | 3 L/min |
| Motor Type | Coreless DC Motor |
| IP Rating | IP00 |
| Service Life | >5,000 hours |
| Operating Temp. | 0 °C to 45 °C |
| Storage Temp. | –40 °C to 60 °C |
| Pump Head Material | Nylon |
| Diaphragm/Valve Material | EPDM |
| Pump Body Material | Nylon |
| Dimensions | 55 × 22 × 58 mm |
| Component | Material / Performance |
| Pump Head | Nylon – lightweight, durable |
| Diaphragm/Valve | EPDM – chemical-resistant, durable |
| Pump Body | Nylon – lightweight, durable |
| Customization Aspect | Options / Notes |
| Label / Branding | Custom branding for OEM projects |
