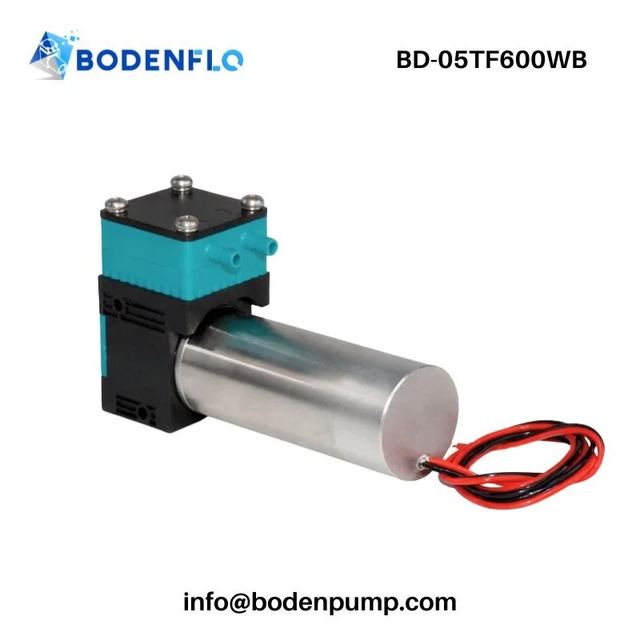

24V Liquid Pump 600 mL/min 7 W Ink Circulation Pump BD-05TF600WB BODENFLO
Model BD-05TF600WB
Overview
24V Liquid Pump 600 mL/min 7 W Ink Circulation Pump BD-05TF600WB BODENFLO, from Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong. The listing gives max flow 600 mL/min (water), 4 L/min (gas), max vacuum –60 kPa and max pressure 2.5 bar (water), 1 bar (gas).
Technical specifications
| Max Flow | 600 mL/min (water), 4 L/min (gas) |
|---|---|
| Max Vacuum | –60 kPa |
| Max Pressure | 2.5 bar (water), 1 bar (gas) |
| Max Power | 7 W |
| Weight | 240 g |
| Type | Small Liquid Pump |
| Structure | Diaphragm Pump |
| Free Water Flow | 600 mL/min (0.158 gpm) |
| Water Pressure Head | >15 m |
| Water Suction Head | 7 m |
| Free Gas Flow | 4 L/min (0.141 cfm) |
| Motor Type | DC Brushless Motor |
| Noise | 55 dB |
| Lifetime | 10000 h |
| Recommended Tubing Size | ID 4 mm, OD 6 mm |
| Ambient Temperature | 5°C to 40°C |
| Fluid Temperature | 10°C to 60°C |
| Pump Head | PA66 |
| Diaphragm | EPDM |
| Valve | EPDM |
| Wetted Parts | PA + EPDM + EPDM |
| Item | Customization Options |
| Application | Ink circulation system |
