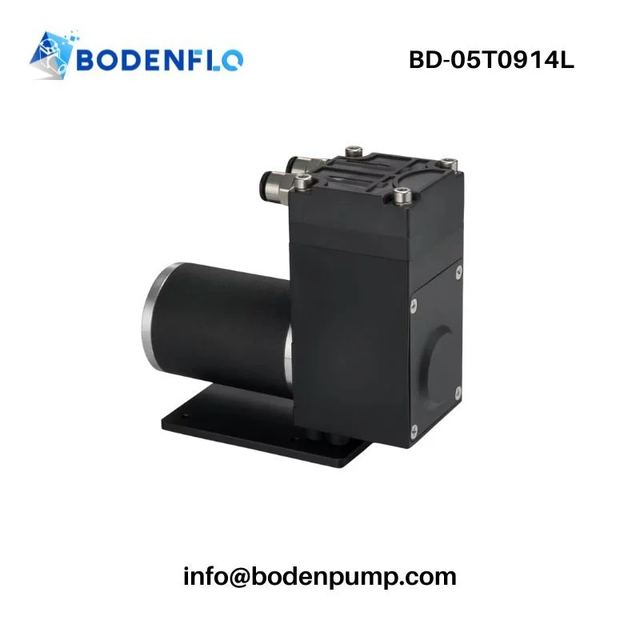

24V Diaphragm Pump 14LPM Small Quiet Vacuum Pump Corrosion-Resistant BD-05T0914L
Model BD-05T0914L
Overview
24V Diaphragm Pump 14LPM Small Quiet Vacuum Pump Corrosion-Resistant BD-05T0914L, listed by Shenzhen Boden Technology Development Co., Ltd in Shenzhen, Guangdong. Published figures include voltage 24V, max flow 14L/min and max vacuum –80 kPa.
Technical specifications
| Voltage | 24V |
|---|---|
| Max Flow | 14L/min |
| Max Vacuum | –80 kPa |
| Max Pressure | 1.9 Bar |
| Max Power | 20W |
| Weight | 780g |
| Maximum Flow Rate | 14 L/min (float meter) |
| Maximum Vacuum | –80 kPa |
| Maximum Pressure | 1.9 bar |
| Motor Type | Brush DC Motor |
| Maximum Power | 20 W |
| Dimensions (L × W × H) | 123 × 64 × 105 mm |
| Service Life | > 4,000 hours continuous duty |
| Customization Aspect | Available Options / Notes |
| Label / Branding | OEM product labeling supported |
| Pump Configuration | Single-head: BD-05T0914L standard |
| Single-head | BD-05T0914L standard |
