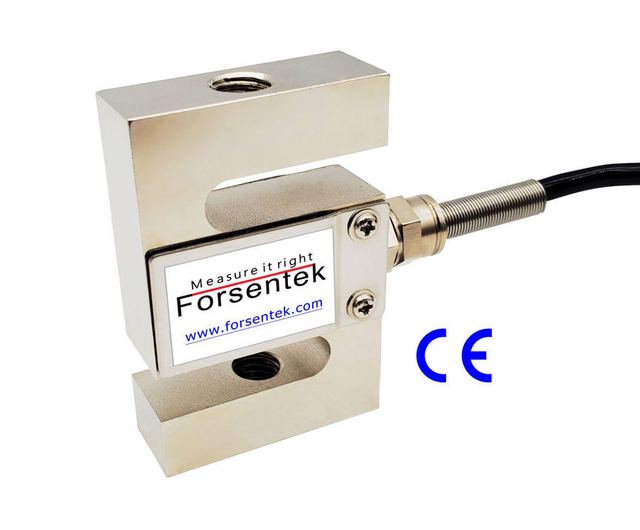

200kg Traction Load Cell 100kg Compression Traction Load Cell 50kg
Model FS6A/FS6B
Overview
200kg Traction Load Cell 100kg Compression Traction Load Cell 50kg supplied by Forsentek Co. Limited. Key published specifications: Type Compression And Traction Load Cell; Capacity 5kg 10kg 20kg 30kg 50kg 100kg 200kg; Structure S Type Load Cell; Load Direction Traction And Compression. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Compression And Traction Load Cell |
|---|---|
| Capacity | 5kg 10kg 20kg 30kg 50kg 100kg 200kg |
| Structure | S Type Load Cell |
| Load Direction | Traction And Compression |
| Output | Analog Sensor |
| Rated output | 2.0mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Nonlinearity | ±0.05% of rated capacity |
| Hysteresis | ±0.05% of rated capacity |
| Nonrepeatability | ±0.03% of rated capacity |
| Creep(5min) | ±0.03% of rated capacity |
| Safe overload | 150% of rated capacity |
| Ultimate overload | 200% of rated capacity |
| Compensated temperature | -10...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.05% R.O./10 o C |
| Temperature shift span | ±0.05% R.O./10 o C |
| Input resistance | 385±50 ohms |
| Output resistance | 380±30 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Alloy steel |
| Cable | Ø5*2000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Connection | M8/M12 Threaded Hole |
