Overview

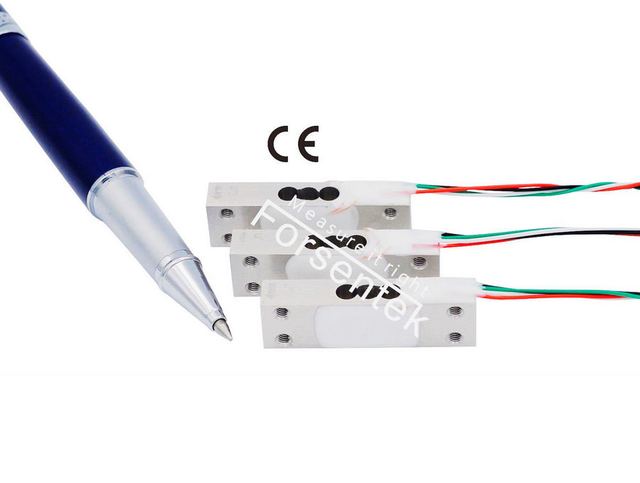

Forsentek Co. Limited lists 10kg Micro Single Point Load Cell 5kg Beam Type Weight sensor 2kg. Published figures include type Single Point Load Cell, output Analog and capacity 10kg 5kg 3kg 2kg 1kg 0.5kg.

Technical specifications

Type	Single Point Load Cell
Output	Analog
Capacity	10kg 5kg 3kg 2kg 1kg 0.5kg
Feature One	Miniature Size
Feature Two	High Accuracy
Feature Three	Light Weight
Feature Four	Affordable
Rated output	1.0 mV/V
Excitation	3-10 V
Zero balance	±0.1mV/V
Nonlinearity	±0.05% of full capacity
Hysteresis	±0.05% of full capacity
Nonrepeatability	±0.05% of full capacity
Creep(3min)	±0.05% of full capacity
Safe overload	120% of full scale
Ultimate overload	200% of full scale
Compensated temperature	0...+40 o C
Operating temperature	-10...+60 o C
Temperature shift zero	±0.03% of R.O./ o C
Temperature shift span	±0.02% of R.O./ o C
Input resistance	1000±100 ohms
Output resistance	1000±10 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	Aluminum alloy
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-
