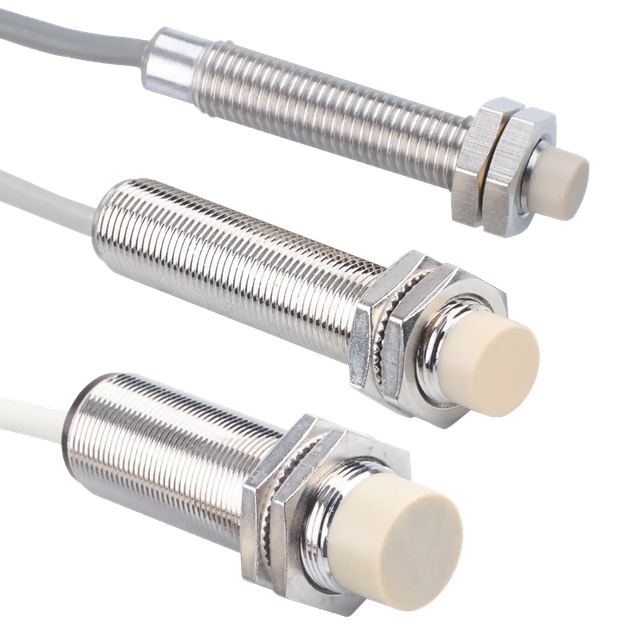

XSZ Miniature Inductive Proximity Sensor
Overview
XSZ Miniature Inductive Proximity Sensor supplied by Zhejiang Xinsenzheng Automation Co., Ltd. Listed under Photoelectric Sensors. Key published specifications: Dimensions (Diameter) 3mm / 4mm / 5mm options available; Installation Method Flush Mount (Shielded); Sensing Distance 0.6 mm ±10% / 0.8 mm ±10%; Standard Sensing Object Iron 4×4×1mm / Iron 5×5×1mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Dimensions (Diameter) | 3mm / 4mm / 5mm options available |
|---|---|
| Installation Method | Flush Mount (Shielded) |
| Sensing Distance | 0.6 mm ±10% / 0.8 mm ±10% |
| Standard Sensing Object | Iron 4×4×1mm / Iron 5×5×1mm |
| Current Consumption | 10 mA Max. |
| Load Current | 100 mA Max. (Residual Voltage: 1.5V Max.) |
| Response Frequency | 1K Hz to 1.5K Hz (High-speed) |
| Protection Circuits | Reversed power supply polarity protection |
| 100 mA Max. (Residual Voltage | 1.5V Max.) |
| Operating Temp | -25 to +55°C | Connection: Pre-wired cable |
