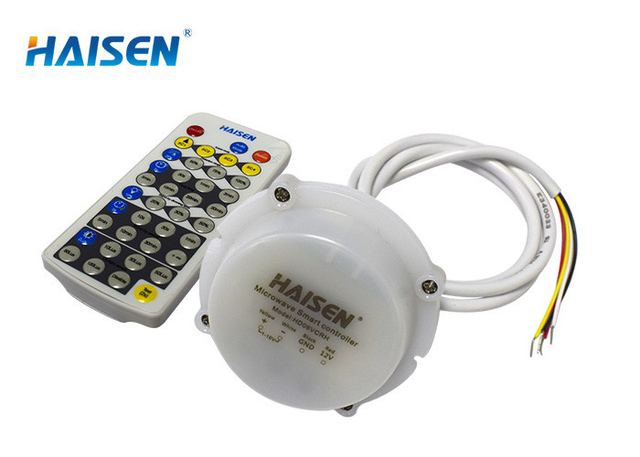

DC12V Microwave compact motion sensor With Daylight Function
Model HD06VCRH
Overview
DC12V Microwave compact motion sensor With Daylight Function, listed under Proximity Sensors by Shenzhen HAISEN Technology Co.,Ltd in Shenzhen, Guangdong. The listing gives operating voltage 10-15V DC, operating current 30mA±5% and output DIM 1-10V.
Technical specifications
| Operating Voltage | 10-15V DC |
|---|---|
| Operating Current | 30mA±5% |
| Output | DIM 1-10V |
| Stand-by Power | <0.5W |
| Hold time | 5s/30s/1min/3min//5min/10min/20min/30min |
| Daylight Threshold | 2Lux/10Lux/50Lux/Disable |
| Stand-by Period | 0s/10s/30s/1min/5min/10min/30min/+∞ |
| Microwave Frequency | 5.8GHz±75MHz |
| Microwave Power | <0.3mW |
| Mounting Height | Max.15m/49ft(ceiling mounted) |
| Detection Range | Max.ø14m/45ft(ceiling mounted) |
| Operating Temperature | -20°C~+60°C |
| IP Rating | IP20 |
| Technical Date | Operating Voltage |
