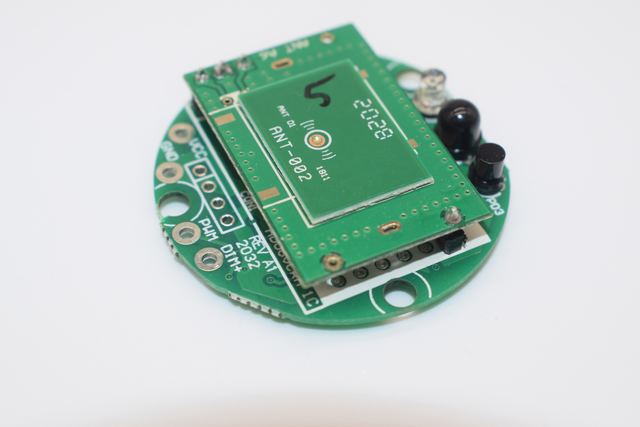

0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High

Model HD06VCRH 1C

0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High

Overview

0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High, listed under Proximity Sensors by Shenzhen HAISEN Technology Co.,Ltd in Shenzhen, Guangdong. Certification RoHS, operating voltage 10-15VDC and operating current ≤30mA (Current consumption) are among the specifications published.

Technical specifications

CertificationRoHS
Operating voltage10-15VDC
Operating current≤30mA (Current consumption)
OutputDIM 0-10V
Connection modebonding pad,+12v,GND,DIM+
Stand-by power≤0.5W
The dimming modeAdd/subtract dimming (power mode 10%-100%, induction mode 60%-100%)
Microwave frequency5.8GHz±75MHz
Microwave Power<0.3mW
Mounting Height10m/32.81ft (ceiling mounted)
Detection RangeMax,ø14m/45.92ft (ceiling mounted)
Method of setting upRemote control
Hold time5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period0s/10s/30s/1min/5min/10min/30min/+∞
CertificateRoHS CE
Motion detection0.5~1.0m/s
Operating Temperature-20°C~+60°C
IP gradeIP20
Application____Daylight PriorityLight automatically on
