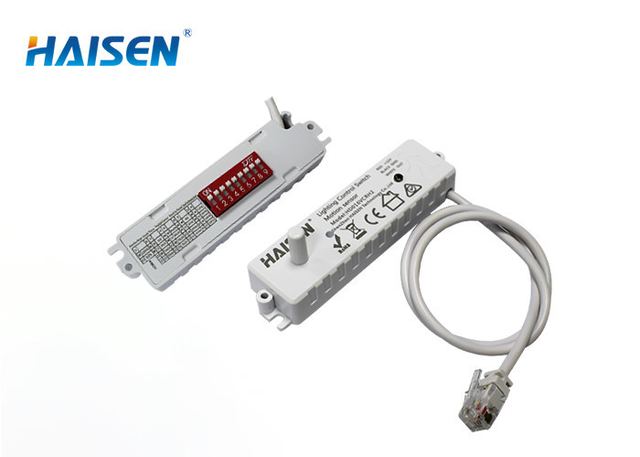

5.8GHz Slim Design 12V DC Motion Sensor Tri-proof / Linear light
Model HD016VCR 3
Overview
5.8GHz Slim Design 12V DC Motion Sensor Tri-proof / Linear light supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE / RoHs; Daylight threshold 2Lux/10Lux/50Lux/ Disable; Stand-by period 0s/30s/20min/+∞; Stand-by power <0.5W(standby). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE / RoHs |
|---|---|
| Daylight threshold | 2Lux/10Lux/50Lux/ Disable |
| Stand-by period | 0s/30s/20min/+∞ |
| Stand-by power | <0.5W(standby) |
| Hold time | 5s/30s/1min/10min |
| Operating current | ≤25mA(Max) |
| Input Voltage | 12VDC |
| Output | PWM |
| Mounting Height | Max.4m/13.12ft |
| Operating Temperature | -20°C~+60°C |
| DC Motion Sensor Dimensions | - 85*22.3*11.7mm |
