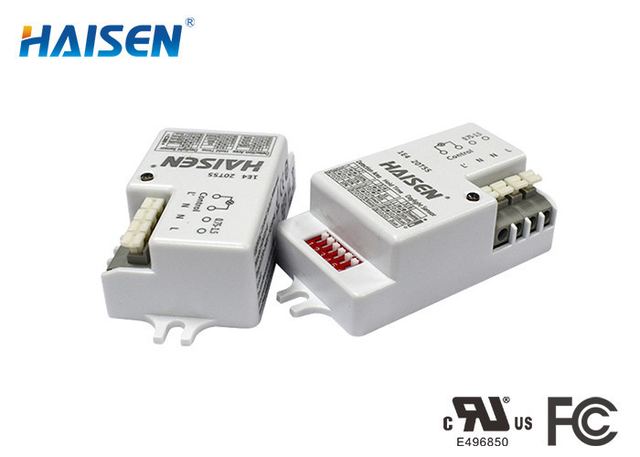

5.8GHz Compact Motion Sensor ON OFF Switch For Ceiling Light
Model HD401S
Overview
5.8GHz Compact Motion Sensor ON OFF Switch For Ceiling Light supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification UL FCC; Operating voltage 120~277 VAC 50/60Hz; Stand-by power <1W; Hold time 5s/90s/5min/15min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | UL FCC |
|---|---|
| Operating voltage | 120~277 VAC 50/60Hz |
| Stand-by power | <1W |
| Hold time | 5s/90s/5min/15min |
| Daylight threshold | 2Lux/10Lux/50Lux/Disable |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Mounting height | Max.6m(ceiling mounted) |
| Detection range | Max.ø14m(ceiling mounted) |
| Operating temperature | -20°C~+60°C |
| Size | 80.2X36.6X23mm |
| IP rating | IP20 |
| Interfaces | 4-pole Pluggable Clamp Terminal(L,N,N,L’)for 0.75-1.5mm 2 Cable |
