Overview

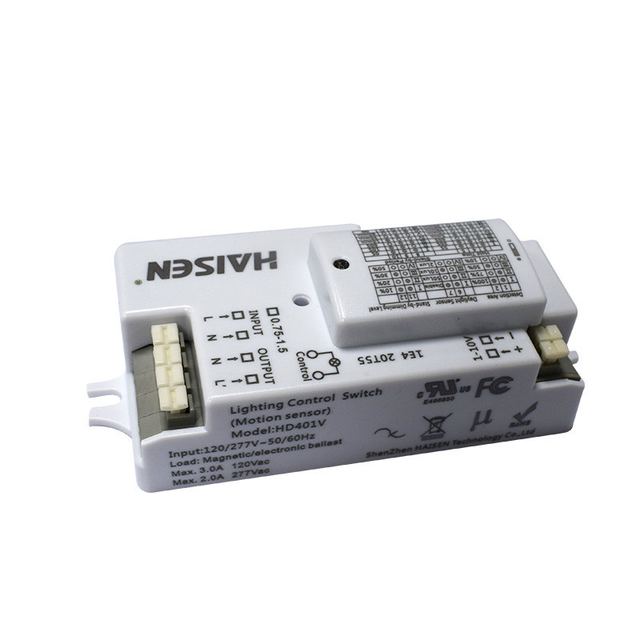

Plastic Cover 5.8G Dimmable Motion Sensor Ceiling Light Type supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification RoHS FCC UL; Nominal voltage 120-277VAC 50Hz/60Hz; Connector Six press terminals(L,N,N,L',1-10V); zero-cross detection Zero crossing detection, less than 80VAC. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	RoHS FCC UL
Nominal voltage	120-277VAC 50Hz/60Hz
Connector	Six press terminals(L,N,N,L',1-10V)
zero-cross detection	Zero crossing detection, less than 80VAC
Power dissipation	<1.3W
Control method	ON/OFF / 1-10V dimming
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Function setting mode	By 12 dial codes
Motion detection	0.5~1.5m/s
IP grade	IP 20
Operating termperature	-20°C~+60°C
Item Type	Ceiling Light
Input Voltage(v)	AC 120-277
Working Lifetime(hour)	50000 Hours
Working Temperature(℃)	-20°C~+60°C
Application	Basement Parking, Underpass,Corridor, Staircase
Output	1-10v Dimming
Dimmable Motion Sensor Mechanical structure	1. Connector:6 press terminals (N.N.L.L '.1-10v)
