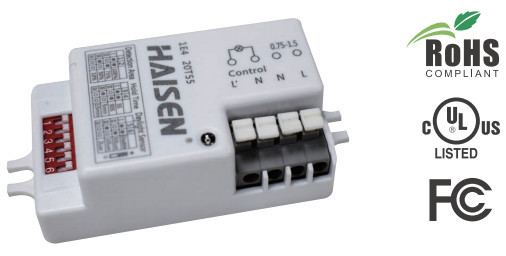

HD401S 120V 277V AC On Off Switch Sensor For Ceiling Light
Model HD401S
Overview
HD401S 120V 277V AC On Off Switch Sensor For Ceiling Light supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification UL FCC RoHS; Input voltage 120~277VAC 50/60Hz; Stand-by power ≤1W; Hold time 5s/90s/5min/15min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | UL FCC RoHS |
|---|---|
| Input voltage | 120~277VAC 50/60Hz |
| Stand-by power | ≤1W |
| Hold time | 5s/90s/5min/15min |
| Daylight threshold | 2Lux /10Lux /50Lux/Disable |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Mounting height | 2.5-6m/8.2-19.8ft(Ceiling Mounted) |
| Detection range | Radius,3-6m/9.84-19.68ft(Ceiling Mounted) |
| Motion detection | 0.5~1.5m/s |
| Operating temperature | -20°C+60°C |
| IP rating | IP20 |
| Certificate | UL FCC RoHS |
