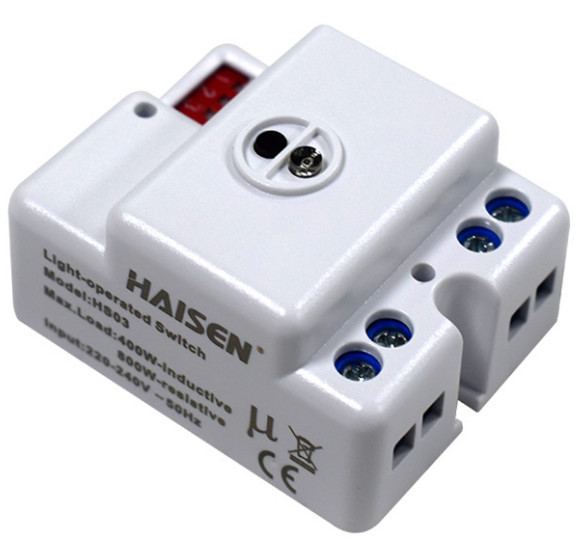

4 Ports Photocell Daylight Sensor Unit 220VAC 240VAC Voltage
Model HS03
Overview
Shenzhen HAISEN Technology Co.,Ltd in Shenzhen, Guangdong lists 4 Ports Photocell Daylight Sensor Unit 220VAC 240VAC Voltage under Proximity Sensors. Published figures include operating voltage 220-240V AC, stand-by power ≤0.5W and mounting height No Height Limitation.
Technical specifications
| Operating voltage | 220-240V AC |
|---|---|
| Switching capacity | 230V,Max,400W(Control gear) Max.800W(Incandescent lamp),10A |
| Stand-by power | ≤0.5W |
| Interfaces | 4-pole pluggable clamp terminal (L,N,N,L’) for 1.5mm2 cable |
| Mounting height | No Height Limitation |
| Operating temperature | -25°C~+60°C |
| IP rating | IP20 |
| Life time | 50,000 hours |
| Voltage | 220-240V AC |
| Control | DIP Switches |
| Operation Temperature | -25°C~60°C |
