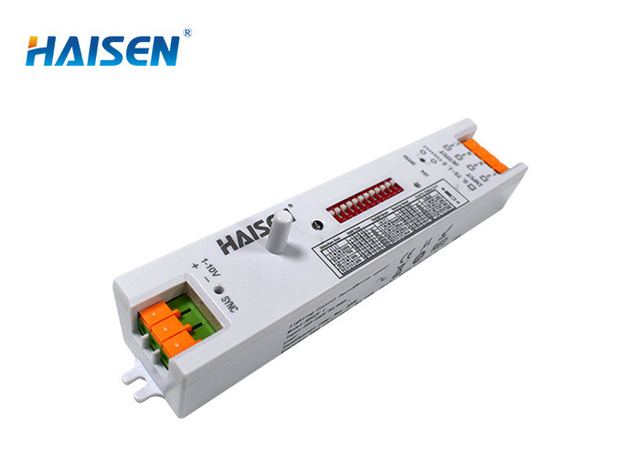

White Ultra Slim Microwave Motion Sensor 1V 10V Dimming Function
Model HD02V 1
Overview
Shenzhen HAISEN Technology Co.,Ltd in Shenzhen, Guangdong lists White Ultra Slim Microwave Motion Sensor 1V 10V Dimming Function under Proximity Sensors. Published figures include certification CE RoHS, microwave frequency 5.8GHz±75MHz and opreating voltage 220-240VAC 50/60Hz.
Technical specifications
| Certification | CE RoHS |
|---|---|
| Microwave frequency | 5.8GHz±75MHz |
| Opreating voltage | 220-240VAC 50/60Hz |
| Switching capacity | Max.400W(Control gear)max.800w(Incandescent lamp) |
| Stand-by power | <1w |
| Hold time | 5s/30s/1min/5min/10min/20min/30min |
| Stand-by period | 0s/10s/1min/10min/30min/1h/∞ |
| Daylight threshold | 2Lux/10Lux/50Lux/disable |
| Mounting height | Max.4m/13.12ft |
| Detection range | Max.12m/39.36ft |
| IP rating | IP 20 |
| Lifetime | 50000 hours |
| Certificate | CE RoHS |
| Operating Voltage | 220~240 VAC 50/60Hz |
