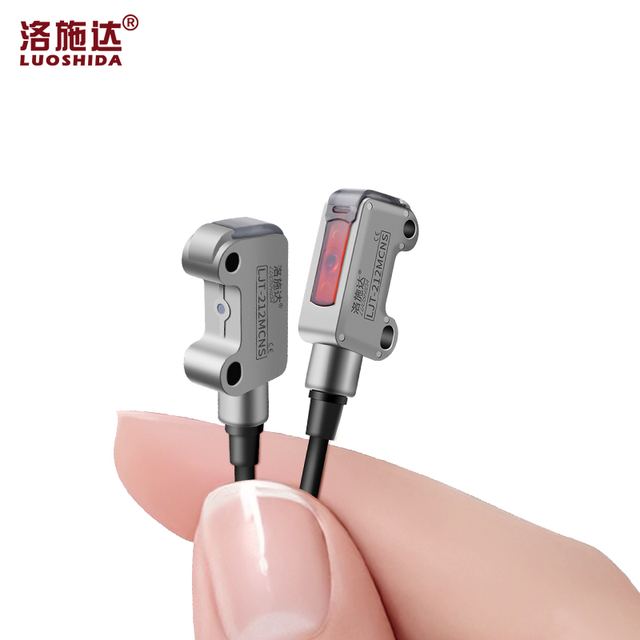

Ultra-thin Diffuse Photoelectric Sensor Flush Mount NPN 12-24V DC IP66 2-30mm Sensing Distance
Overview
Ultra-thin Diffuse Photoelectric Sensor Flush Mount NPN 12-24V DC IP66 2-30mm Sensing Distance, listed under Proximity Sensors by Luoshida Sensor (dongguan) Co., Ltd in Dongguan, Guangdong. Published figures include certification CE RoHS, model LJD-2150CNS and output NPN/PNP N.O/N.C..
Technical specifications
| Certification | CE RoHS |
|---|---|
| Model | LJD-2150CNS |
| Output | NPN/PNP N.O/N.C. |
| Operating Voltage | 12-24V DC |
| Response Time | 5ms |
| Protection Category | IP65 |
| Wire material | PVC |
| Light spot size | About 3mm |
| Output current | 150mA |
| Wire outlet method | 4-wire output (2 meters) |
| Shell material | Stainless steel (SUS316L) |
| waterproof level | ip66 |
| Operating temperature | -25~+55°C |
| Detection distance | White: 2-50mm/Black:2-35mm |
| Size | M3 |
| Material | Stainless Steel |
