Overview

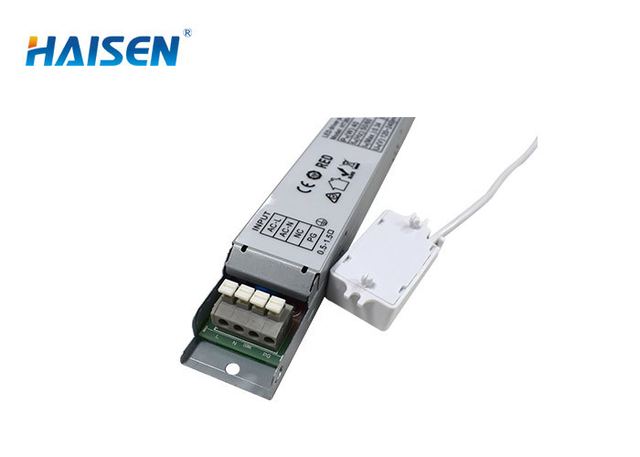

Remote Control HT36V Microwave PIR Detector For Tri Proof Light supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE TUV RED; Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable; Stand-by period 0s/10s/30s/1min/5min/10min/30min/+∞; Detection angle -20°C~50°C Tc: 80°C. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	CE TUV RED
Daylight threshold	2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period	0s/10s/30s/1min/5min/10min/30min/+∞
Detection angle	-20°C~50°C Tc: 80°C
Mounting height	Max.6m/19.68ft
Detection range	Max.ø14m/45.92ft
Empty load voltage	≤63V DC
Efficiency	87% (Max.)
Input current	0.34-0.18A Max
Input power	Max. 40W
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Output LED voltage	30-48VDC
Output LED power	36W
Life time	50,000 hours
Installation	Installed inside lamps
Operating temperature	Ta:- 20°C~50°C Tc: 85°C
Abnormal protection	SCP:Auto recovery,OVP,OCP,OTP
EMC standard	EN55015
Safety standard	EN61347-1 EN61347-2-13 EN60598-1
