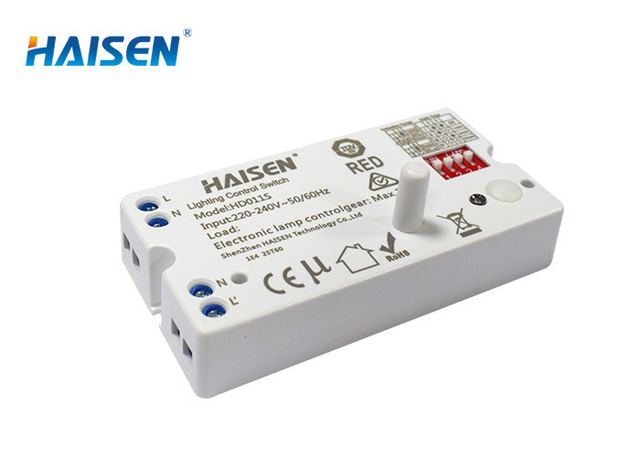

220VAC 240VAC Microwave PIR Detector Ceiling Mounting design
Model HD011S
Overview
220VAC 240VAC Microwave PIR Detector Ceiling Mounting design supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification RoHS TUV RED CE; Operating voltage 220-240 VAC 50/60Hz; Swtching capacity Max.100w; Stand-by power ≤0.5w. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | RoHS TUV RED CE |
|---|---|
| Operating voltage | 220-240 VAC 50/60Hz |
| Swtching capacity | Max.100w |
| Stand-by power | ≤0.5w |
| Hold time | 5s/1min/3min/10min |
| Daylight threshold | 30Lux/disable |
| Microwave frequency | 5.8GHz±75MHz |
| Mounting height | Max.2.5-4m/8.2-13.12ft |
| Detection range | Max.12m/39.36ft |
| IP rating | IP 20 |
| Lifetime | 50000 hours |
| Certificate | SAA,TUV,RED,CE |
| Opreating Voltage | 220-240 VAC 50/60Hz |
| Switching Capacity | Max.100W |
| Interfaces | 4-pole Pluggable Clamp Terminal (L,N,N,L') For 24-14AWG Cable |
| Mounting heigh | max 2.5-4m/8.2-13.12ft. |
| Dimensions | size 76.9*39.9*27.7mm |
