Overview

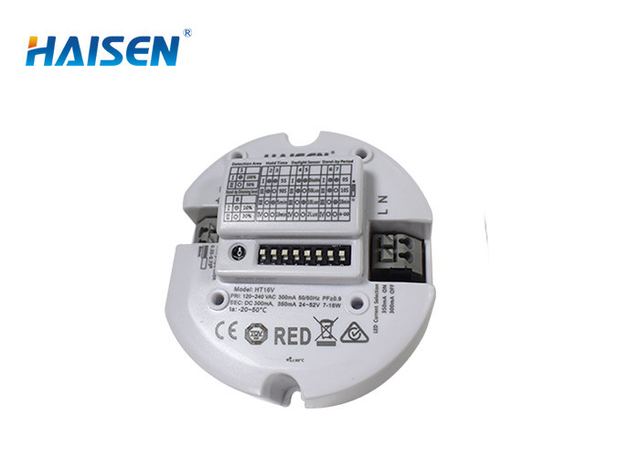

TUV SAA RED CE Ceiling Light 16W Dimmable Motion Sensor supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification RoHS CE TUV SAA RED; Input voltage 120-240VAC,50Hz/60Hz; Input current 0.3A Max; Input power 16w. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	RoHS CE TUV SAA RED
Input voltage	120-240VAC,50Hz/60Hz
Input current	0.3A Max
Input power	16w
Output LED current	0.3A/0.35A
Output LED voltage	24V-52V DC
Output LED power	7W-16W
Stand-by power	≤0.5W(230VAC)
Empty load voltage	≤63V
Efficiency	87%(Max.)
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Hold time	5s/90s/5min/10min
Daylight threshold	2Lux/10Lux/50Lux/Disable
Stand-by period	0s/10s/10min/+∞
Mounting height	Max.6m (ceiling mounted)
Deteation range	Max.ø14m (ceiling mounted)
Motion detection	0.5–1.5m/s
Operating temperature	–20℃–+50℃ Tc:80℃
Abnormal protection	SCP:Auto recovery,OVP,OCP,OTP
EMC standard	EN55015
Safety standard	EN61347-1 EN61347-2-13 EN60598-1
IP rating	IP 20
Output	For Ceiling Light
Operating Voltage	RoHS TUV RED SAA CE
Technical data	Model number
