Overview

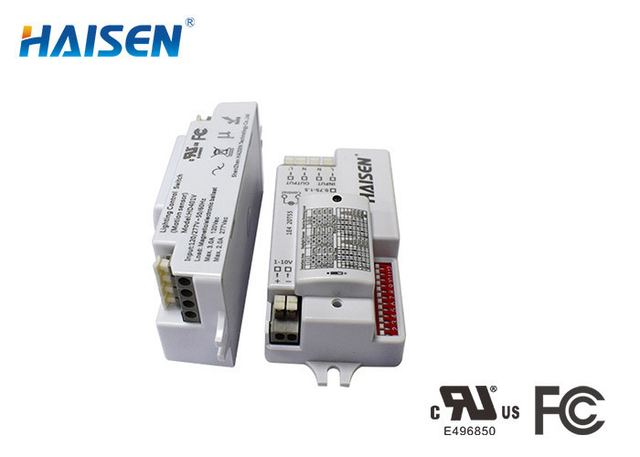

High Frequency 5.8GHz Compact UL Sensor Automatic Switching supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification UL FCC; Desgin Standard version; Operating voltage 120~277 VAC 50/60Hz; Stand-by power <1W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	UL FCC
Desgin	Standard version
Operating voltage	120~277 VAC 50/60Hz
Stand-by power	<1W
Hold time	5s/30s/1min/5min/10min/20min/30min
Stand-by period	0s/10s/1min/10min/30min/1h/∞
Daylight threshold	2Lux/10Lux/50Lux/Disable
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Interfaces	6-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-)for 0.75-1.5mm2 cable
Mounting height	Max.15m(ceiling mounted)
Detection range	Max.ø12m(ceiling mounted)
Operating temperature	-20°C~+55°C
IP rating	IP20
Installation	Interior installed
Size	103X45X31mm
