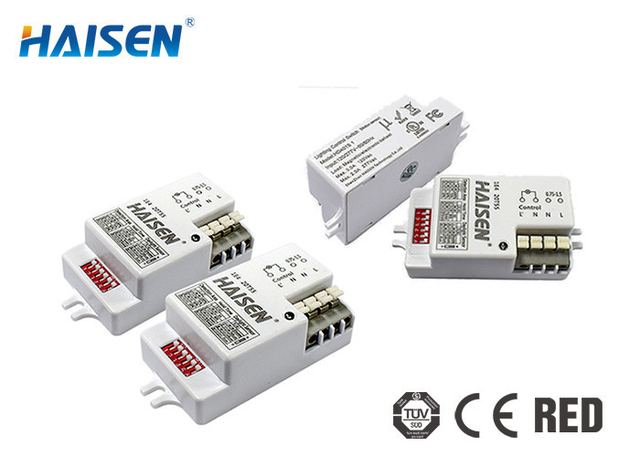

RED CE Approved Compact On Off Function Sensor For Ceiling Light
Model HD01S-6
Overview
RED CE Approved Compact On Off Function Sensor For Ceiling Light supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification RED CE; Operating voltage 220~240 VAC 50/60Hz; Switching capacity Max.400W(Control gear) Max.800W(Incandescent lamp); Stand-by power ≤0.5W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | RED CE |
|---|---|
| Operating voltage | 220~240 VAC 50/60Hz |
| Switching capacity | Max.400W(Control gear) Max.800W(Incandescent lamp) |
| Stand-by power | ≤0.5W |
| Hold time | 5s/90s/5min/15min |
| Daylight threshold | 2Lux/10Lux/50Lux/Disable |
| Microwave frequency | 5.8GHz ±75MHz |
| Microwave power | <0.3mW |
| Interfaces | 4-pole pluggable clamp terminal(L,N,N,L’) for 1.5mm2cable |
| Operating temperature | 20°C~+55°C |
| IP rating | IP20 |
| Life time | 50000h @ Ta Full load |
| Cover Color | White |
| Application | For Ceiling Lights |
